Urban Flood Monitoring: Why Cities Need Real-Time Flood Intelligence

Rapid urbanization is reshaping cities worldwide as people migrate in search of economic opportunities, but it is also increasing exposure to natural hazards, particularly flooding. The challenge is especially severe in low and middle-income countries, where expanding urban areas often outpace resilient infrastructure. Today, 55% of the global population lives in cities, a figure expected to reach 68% by 2050. A spatial analysis of 1,860 cities found that over one-third (683 cities) are located in high-risk flood zones. As such, cities must adopt proactive, data-driven flood management supported by real-time urban flood monitoring networks. Otherwise, increasing climate variability and the continued expansion of impermeable urban surfaces will expose the limitations of conventional flood defenses and drainage systems.

Listen the blog in 60 sec

Why Urban Flooding Is Becoming More Common?

Urban flooding is becoming increasingly common as cities face more intense rainfall events while rapid urban development continues to strain natural drainage systems and existing infrastructure.

Increasing Rainfall Intensity and Climate Variability

Flooding remains the most frequently occurring weather-related disaster, representing up to 40% of recorded weather-related disaster events globally. Climate change is directly amplifying urban flood risks since a warmer atmosphere holds approximately 7% more moisture per degree Celsius of warming. This results in sudden, violent downpours that drop days’ worth of rain in a matter of hours.

The consequences are already visible across several major Indian cities:

Chennai: In 2015, Chennai received over 1,000 mm of rainfall in November alone, making it the city’s wettest November in nearly 100 years.
Bengaluru: On 18 to 19 May 2025, Bengaluru recorded 105 mm of rainfall in just 24 hours, exposing the city’s vulnerability to short-duration intensified rainfall events and highlighting the growing need for real-time urban flood intelligence.
Mumbai: Observer Research Foundation data reveal that Mumbai experienced a crushing 875 mm of rainfall in just four days in August 2025.
Kolkata: On 22 to 23 September 2025, Kolkata recorded more than 247 mm of rainfall within 24 hours, triggering widespread waterlogging and urban flooding across the city.

Urbanization Is Outpacing Drainage Capacity

Urbanization transforms natural landscapes into dense built environments, disrupting the natural water cycle. While forests, wetlands, and grasslands absorb and slowly release rainfall, urban development reduces this capacity through three key structural changes:

Expansion of Impermeable Surfaces: As asphalt, concrete, and roofing materials replace soil, the ground loses its infiltration capacity. Rainwater cannot penetrate the surface, forcing 80% to 90% of it to remain above ground as immediate surface runoff.
Loss of Natural Retention Areas: Wetlands, natural low-lying floodplains, and seasonal lakes are routinely paved over to clear room for real estate development.
Encroachment of Drainage Channels: Vital natural channels and storm canals are frequently narrowed, choked with construction debris, or built over entirely, severely reducing the volume of water they can safely carry out of the city.

According to hydrological studies published by the Observer Research Foundation, these urbanization-induced catchment alterations can increase peak flood discharges by 1.8 to 8 times, while total surface runoff volumes swell up to 6 times.

Download the complete blog as a PDF

Urban Flood Monitoring

Where Traditional Flood Management Falls Short

As rainfall patterns become more unpredictable and urban flood risks continue to grow, conventional flood management methods are struggling to keep pace. Many cities still depend on delayed, fragmented information, making it difficult to detect localized flooding early and coordinate a timely emergency response.

1. Dependence on Manual Monitoring

Many municipal corporations still evaluate rising water levels using manual inspection methods. Field personnel are sent to physically check painted staff gauges along major rivers, canals, or underpasses during torrential downpours. This approach introduces serious drawbacks, such as:

Delayed Reporting
Limited Visibility
Inconsistent Data Collection
Resource-Intensive Operations

2. Reactive Emergency Response

Without automated monitoring, cities often react only after flooding has already occurred. Delayed warnings, late evacuations, and poorly coordinated deployment of pumps and emergency resources increase both flood impacts and response costs.

3. Lack of Hyperlocal Visibility

A common point of failure for municipal authorities is relying entirely on regional citywide weather forecasts to predict street-level flooding. Standard rainfall alerts might accurately predict that a city will receive 50 mm of rain over the next twelve hours, but fail to indicate which specific street corner will be under three feet of water.

From Data to Defense:

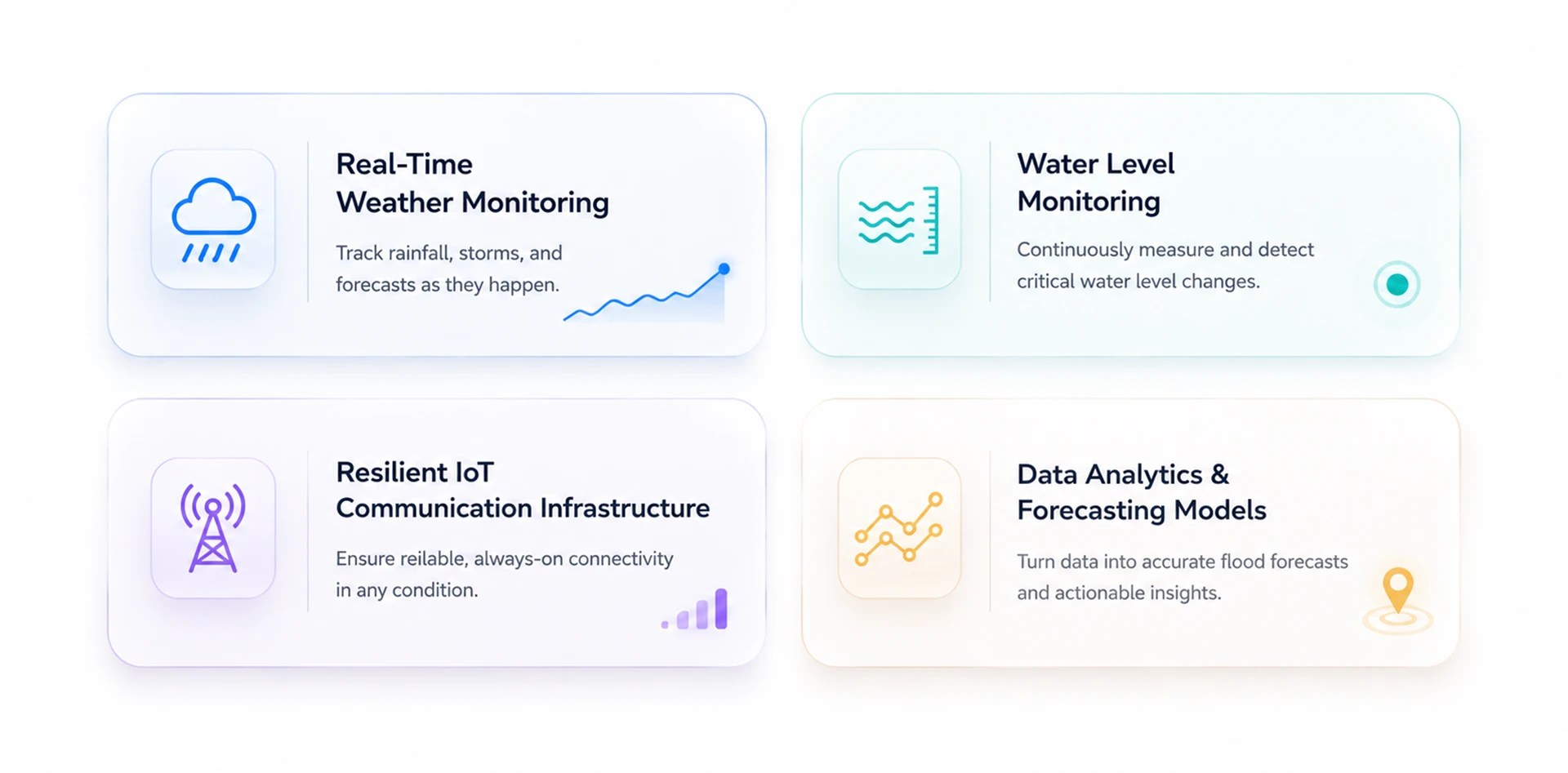

Four Pillars of Predictive Flood Resilience

To transition from a reactive posture to pre-emptive resilience, cities require an integrated, digital urban flood forecasting architecture.

1. Real-Time Weather Monitoring

High-density micro-weather stations continuously capture localized atmospheric changes.

Parameters Tracked: Rainfall volume, rainfall intensity (mm/min), wind speed/direction, temperature, humidity, and atmospheric pressure.

Operational Benefit (Early Warning Before Flooding Occurs): Enables targeted public alerts 30 to 60 minutes before severe downpours hit. This drives a faster response from emergency crews, improved preparedness for transit networks, and reduced disruption as citizens secure property and alter travel plans.

2. Water Level Monitoring System

An automated water level monitoring system uses non-contact ultrasonic or radar sensors to track volumetric changes across critical choke points 24/7.

Infrastructure Monitored: Underground stormwater drains, open canals, urban rivers, retention ponds, and pumping station intakes.

Operational Benefit (Improved Resource Allocation): Live data feeds central command to optimize emergency logistics. This ensures precise pump deployment at overwhelmed gates, proactive traffic diversions at low-lying underpasses, efficient routing of emergency teams, and dynamic public communication via live navigation apps.

3. Resilient IoT Communication Infrastructure

Weather stations and water level sensors rely on a resilient IoT communication network to transmit real-time data from distributed monitoring sites to a centralized cloud platform. Multiple communication options, including 4G LTE, Wi-Fi, Ethernet, and RS485, provide redundancy and maintain data availability even during localized network failures.

Operational Benefit (Better Protection of Critical Infrastructure): Continuous tracking safeguards core civic infrastructure during an extreme weather event. It helps protect power grids, hospitals, airports, rail stations, and other critical infrastructure, while also shielding vulnerable electrical systems.

4. Data Analytics and Forecasting Models

This layer processes live environmental data through a cloud-based flood prediction and analysis system. By cross-referencing real-time rainfall data with local digital elevation models, machine learning algorithms transform raw input into highly accurate, forward-looking forecasts and analysis.

Operational Benefit (Data-Driven Urban Planning): Long-term historical data captured by these models moves municipal investments from guesswork to factual flood risk management. Planners can use these insights to identify chronic flood hotspots, execute precise drainage improvement planning, and design long-term climate adaptation strategies, such as resilient smart-city flood-management zoning.

How Aurassure Aqua Enables

Real-Time Flood Intelligence

Designed for urban environments, Aurassure Aqua can continuously monitor water levels alongside critical weather parameters across flood-prone infrastructure such as stormwater drains, canals, rivers, retention ponds, and low-lying underpasses. The platform combines high-precision microwave radar water level sensing with real-time monitoring of rainfall, temperature, humidity, wind speed, and wind direction (with provisions for atmospheric pressure, UV index, and light intensity) to provide a comprehensive picture of evolving flood conditions.

Data is transmitted every minute, with configurable reporting intervals as short as 15 seconds during rapidly evolving flood events.

Aurassure Aqua transforms environmental data into operational intelligence through a unified cloud platform featuring:

Real-time dashboards for live monitoring
Historical trends and forecasting
Instant alerts for rising flood risks

This enables disaster management and command centres to detect emerging risks earlier, continuously monitor critical assets, and coordinate emergency response using a unified operational view.

Built for continuous outdoor operation, Aurassure Aqua offers:

Multiple connectivity options, including 4G LTE, Wi Fi, Ethernet, and RS485
AC, DC, and solar power with battery backup of upto 24 hours with customized data transmission frequency
Rugged weather-resistant design for reliable performance in extreme conditions

These capabilities ensure uninterrupted monitoring even during severe weather when conventional infrastructure may be compromised.

Beyond emergency response, Aurassure Aqua builds a long-term environmental intelligence profile of a city by continuously capturing localized weather and hydrological data. These insights help cities identify recurring flood hotspots, optimize drainage infrastructure, improve investment planning, and strengthen climate adaptation strategies.

Download the complete blog as a PDF

Conclusive Note

As extreme rainfall events become more frequent and urban infrastructure continues to face mounting pressure, urban flood monitoring is becoming a critical component of city management rather than a seasonal precaution. Municipal authorities need timely, location-specific intelligence to protect critical infrastructure, reduce service disruptions, and make informed decisions when every minute counts. Equally important, the historical data generated by these systems supports better drainage planning, infrastructure upgrades, and long-term climate adaptation investments. Cities that invest in urban flood monitoring today are creating a reliable foundation for future urban development in an increasingly uncertain climate.
