PM4.25 in Ambient Air Quality Monitoring: Measurement, Applications & Limitations
Air quality monitoring has traditionally focused on two familiar particulate fractions: PM2.5 and PM10. But airborne particles exist across a continuous spectrum of sizes, and a single measurement cannot describe the entire particulate environment.
This is where PM4.25 enters the discussion.
PM4.25 represents a particle-size fraction between PM2.5 and PM10. It can provide additional information about the distribution of airborne particles, particularly where understanding intermediate-sized particulate matter is useful.
However, PM4.25 also raises important questions: How is it measured? How reliable is the measurement? Is it a regulatory parameter? And when does monitoring another particle fraction actually add value?
Understanding these questions is essential before treating PM4.25 as another number on an air-quality dashboard.
Listen the blog in 60 sec

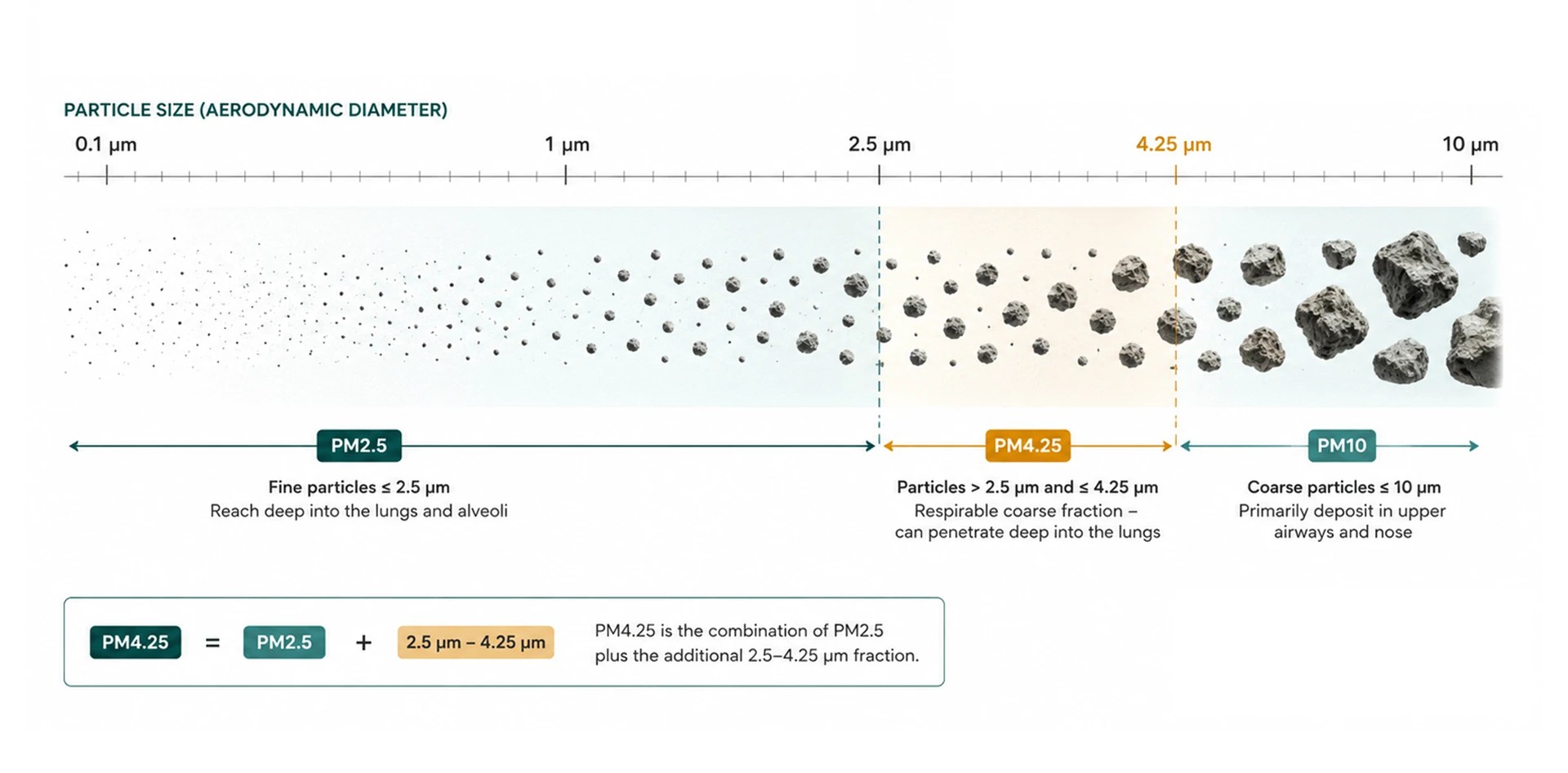

What Is PM4.25?
PM4.25 refers to particulate matter with an aerodynamic diameter of approximately 4.25 micrometres (µm) or smaller.
The term needs to be understood carefully because PM4.25 is a size fraction, not a chemically distinct pollutant. It can contain particles with very different compositions, shapes and origins.
The “4.25” refers to an aerodynamic size cut-point. Aerodynamic diameter is particularly useful for airborne particles because particles with different physical sizes, densities and shapes can behave similarly in moving air. Therefore, air-quality instruments often classify particles according to their aerodynamic behaviour rather than simply measuring their physical diameter.
This places PM4.25 between two established particulate fractions:
- PM2.5: particles with aerodynamic diameter ≤2.5 µm
- PM4.25: particles with aerodynamic diameter ≤4.25 µm
- PM10: particles with aerodynamic diameter ≤10 µm
Importantly, these fractions overlap. PM4.25 is not a completely separate population of particles sitting between PM2.5 and PM10. Instead, it includes the PM2.5 fraction plus particles in the larger size range up to the 4.25 µm cut-point.
This distinction matters when interpreting measurements.
ISO 7708:1995 defines conventions for particle-size fractions used in health-related sampling, including inhalable, thoracic and respirable fractions. The standard remains current, although ISO is currently developing a revision that will update and clarify these conventions.
Why does particle size matter?
Particle size influences how particles behave in the atmosphere, how long they can remain suspended, where they deposit in the respiratory system and how they move through different environments.
But particle size alone does not determine health impact. Composition, concentration, exposure duration and other characteristics also matter.
That is why PM4.25 should be viewed as an additional measurement dimension—not as a standalone indicator of toxicity.

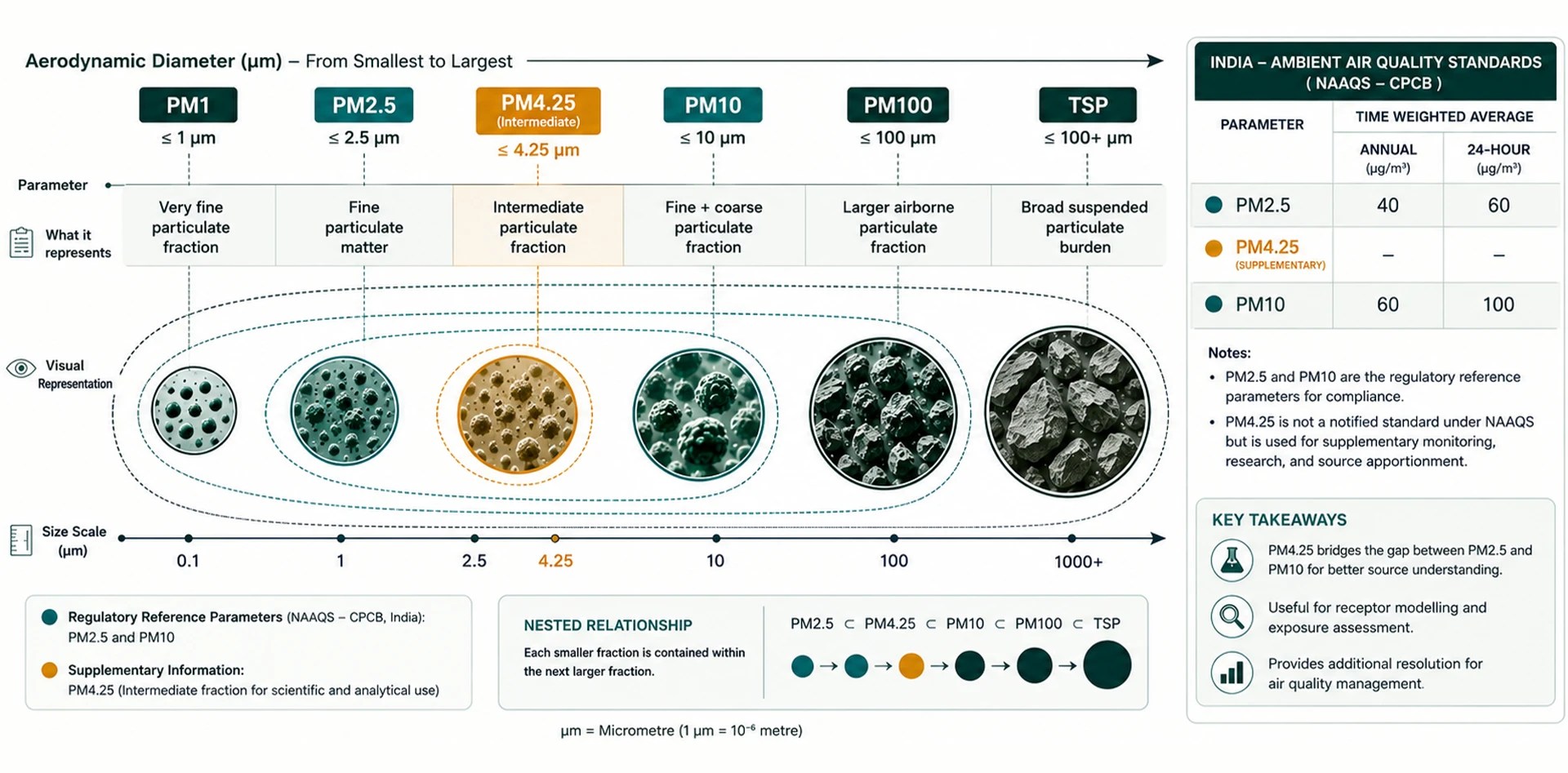

PM4.25 vs PM2.5 vs PM10
For regulatory ambient monitoring in India, PM2.5 and PM10 remain the relevant particulate standards. The National Ambient Air Quality Standards specify annual limits of 40 µg/m³ for PM2.5 and 60 µg/m³ for PM10, with 24-hour limits of 60 µg/m³ and 100 µg/m³, respectively. PM4.25 is not listed as a separate NAAQS pollutant.
This means PM4.25 should generally be considered supplementary information rather than a replacement for regulatory PM2.5 or PM10 monitoring.
Download the complete blog as a PDF

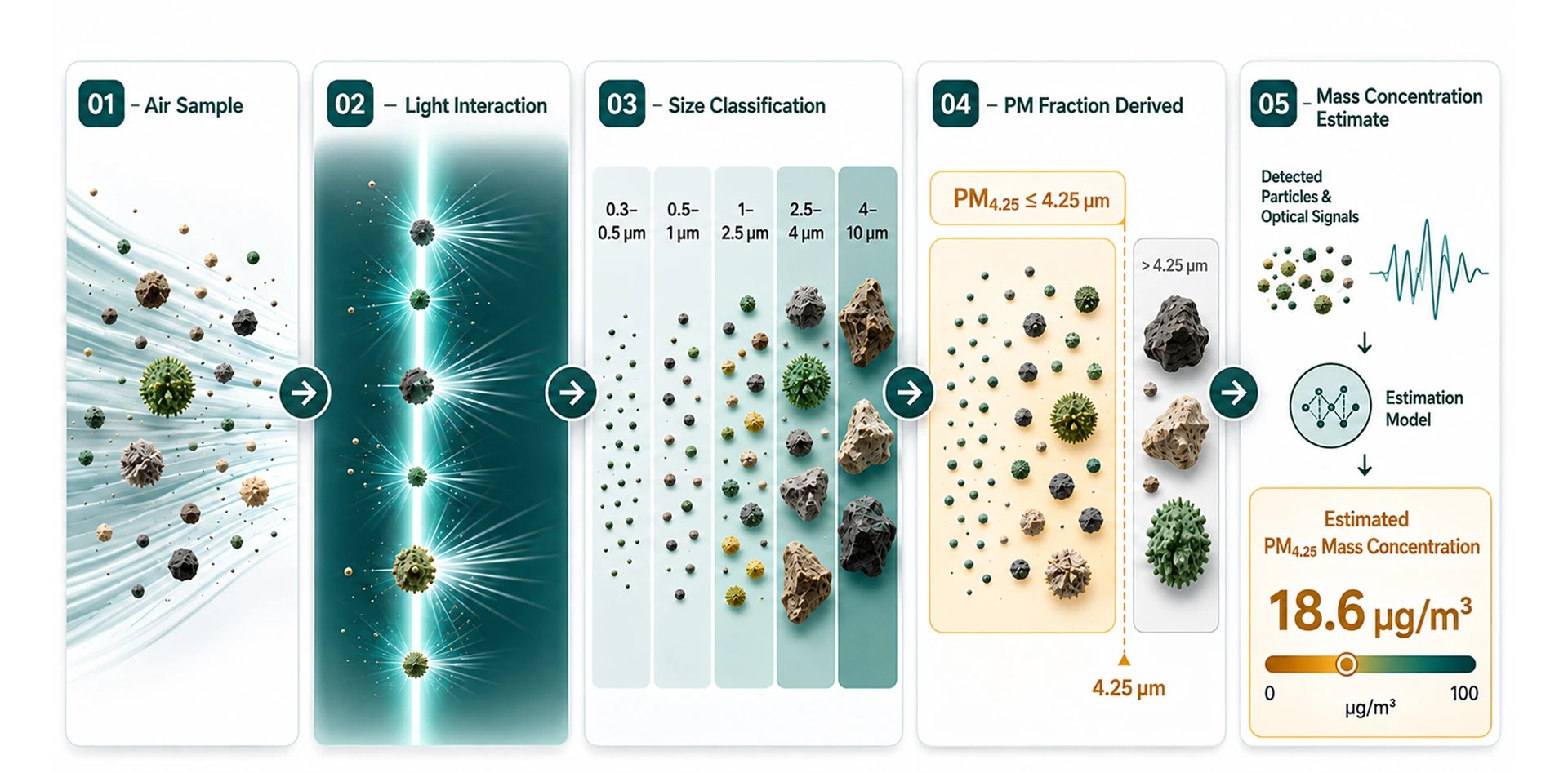

How Is PM4.25 Measured?
Understanding PM4.25 measurement requires understanding how modern particulate sensors estimate particle size.
One common approach is optical particle measurement.
1. Air enters the measurement system
The instrument draws an air sample through a controlled measurement path. The sampling system is designed to expose airborne particles to the instrument under defined conditions.
2. Particles interact with light
In an optical particle counter or optical particle sensor, particles pass through a light source, typically a laser or LED-based optical system.
As a particle crosses the light beam, it scatters light.
The intensity and characteristics of that scattered signal provide information that the instrument uses to estimate the particle’s size.
3. Particles are assigned to size bins
The instrument processes detected particles and assigns them to predefined size channels or bins.
For example, an instrument may distinguish particles across ranges such as:
0.3–0.5 µm → 0.5–1 µm → 1–2.5 µm → 2.5–4 µm → 4–10 µm
The exact bin structure varies by instrument.
4. A PM fraction is derived
Once the particle-size distribution has been estimated, the instrument can calculate a particulate fraction corresponding to a selected cut-point.
This is where a parameter such as PM4.25 can be derived, depending on the instrument’s measurement architecture and data-processing methodology.
5. The result is not simply a particle count
A crucial distinction is that particle counting and PM mass concentration are not the same thing.
An optical instrument observes particles through their interaction with light and then estimates characteristics such as size and concentration. Converting those observations into a mass concentration can depend on assumptions about particle properties.
Factors such as particle density, refractive index, morphology and composition can influence optical response.
Therefore, two instruments using different optical configurations or algorithms may not necessarily produce identical PM4.25 values in the same environment.

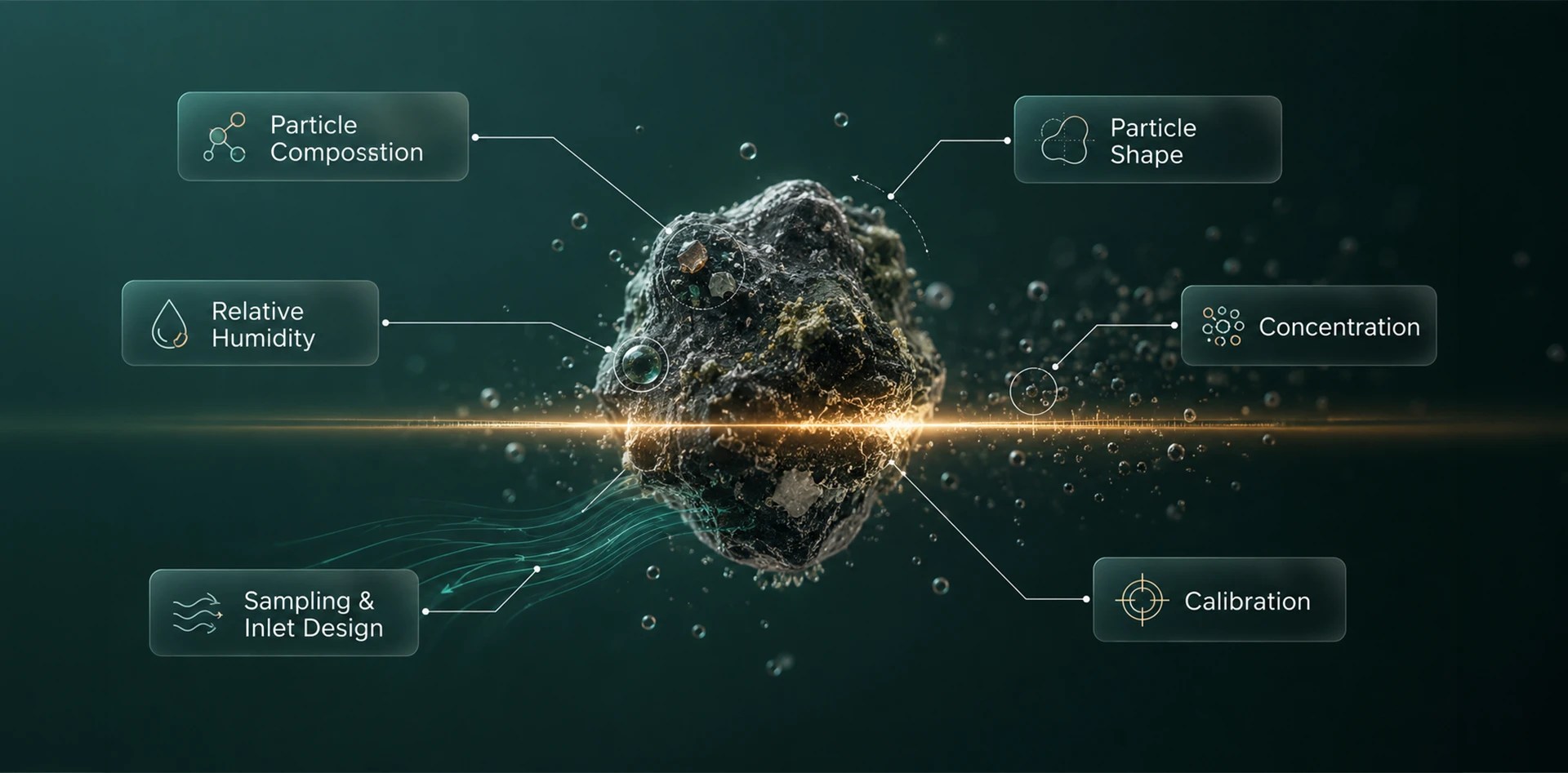

What Affects PM4.25 Measurement Accuracy?
The quality of a PM4.25 measurement depends on much more than the sensor itself.
Particle composition
Dust, soot, salt, combustion particles and other aerosols can interact differently with light. An optical system therefore does not respond to every particle in exactly the same way.
Particle shape
Real atmospheric particles are rarely perfect spheres. Their shape can influence aerodynamic behaviour and optical response.
Relative humidity
Humidity can cause hygroscopic particles to absorb water and increase in size. This can alter optical measurements and affect estimated particulate concentrations.
Concentration
At high concentrations, particle coincidence and optical saturation can become concerns for some optical measurement systems.v
Sampling and inlet design
The way air enters an instrument affects which particles reach the sensing region. Flow rate, inlet geometry, losses in tubing and environmental conditions can all influence the measurement.
Calibration
Calibration is critical. A sensor calibrated under one aerosol condition may behave differently when exposed to another particle population.
This is why “the sensor measures PM4.25” is not enough information to judge measurement quality.
A robust monitoring programme should also consider calibration methodology, reference comparison, deployment conditions, data validation and ongoing performance checks.
Download the complete blog as a PDF

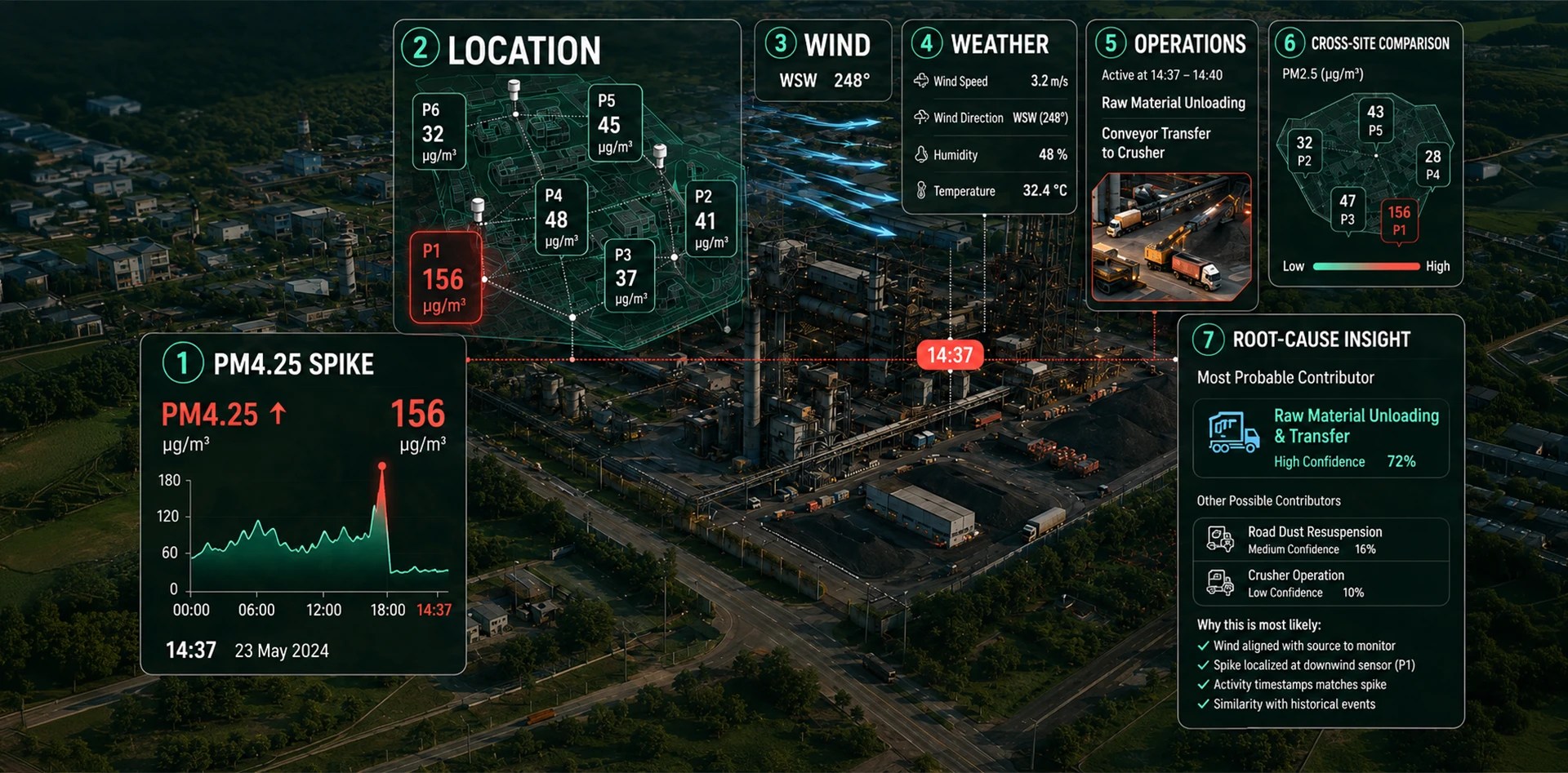

PM4.25 Measurement Limitations:
What the Number Doesn't Tell You
This is perhaps the most important part of understanding PM4.25.
1. PM4.25 is not a universal regulatory benchmark
Unlike PM2.5 and PM10 in India’s NAAQS, PM4.25 does not currently have an equivalent ambient regulatory limit in the Indian framework.
Therefore, a PM4.25 concentration should not automatically be interpreted as a compliance exceedance.
2. PM4.25 is not a chemically defined pollutant
Two environments can have the same PM4.25 concentration but very different particle compositions.
A measurement of particle mass does not tell you whether the particles primarily originated from combustion, mineral dust, construction activity, industrial processes or another source.
3. Optical measurements involve assumptions
Optical particle measurements are influenced by particle properties and the relationship between light scattering and estimated particle size or mass.
Consequently, instrument specifications, calibration and validation matter.
4. PM4.25 does not identify the pollution source
Suppose PM4.25 suddenly increases at the boundary of an industrial facility.
The measurement tells you that particulate concentration increased.
It does not, by itself, tell you whether the cause was:
- Material handling
- Vehicle movement
- Production activity
- Road dust
- A dust-control failure
- A change in wind direction
- Pollution transported from outside the facility
To answer those questions, particulate measurements need context.
5. A single monitoring point can miss spatial variation
Air pollution is rarely uniform across a complex site.
A reading from one location may not represent conditions near a production line, road, storage area, worker zone or facility boundary.
Spatially distributed monitoring can therefore be more informative when the objective is source identification or hotspot detection.
6. A high-frequency measurement still needs interpretation
Modern sensors can generate large volumes of real-time data. But more data does not automatically mean more understanding.
A useful environmental monitoring system should help answer:
- Where did the change occur?
- When did it occur?
- What else was happening at that time?
- Did weather conditions change?
- Did nearby monitoring points detect the same event?
- Was there a corresponding operational activity?
This is the difference between measurement and environmental intelligence.
Where Can PM4.25 Monitoring Be Useful?
Construction
Construction sites can experience rapidly changing particulate concentrations due to excavation, demolition, material handling, vehicle movement and dust-generating activities.
PM4.25 can potentially provide additional particle-size information alongside established PM measurements.
Aurassure Trust is designed for real-time environmental monitoring in construction environments, combining particulate and other environmental measurements with threshold-based alerts, multi-site intelligence and reporting.
Industrial facilities
Industrial environments can contain multiple simultaneous particulate sources.
Aurassure Infra is designed for outdoor air-quality monitoring and supports PM2.5, PM10 and other gaseous and environmental parameters depending on configuration.
Research and environmental studies
PM4.25 can also be useful when researchers or environmental professionals need more granular information about particulate-size distributions beyond conventional PM2.5 and PM10.

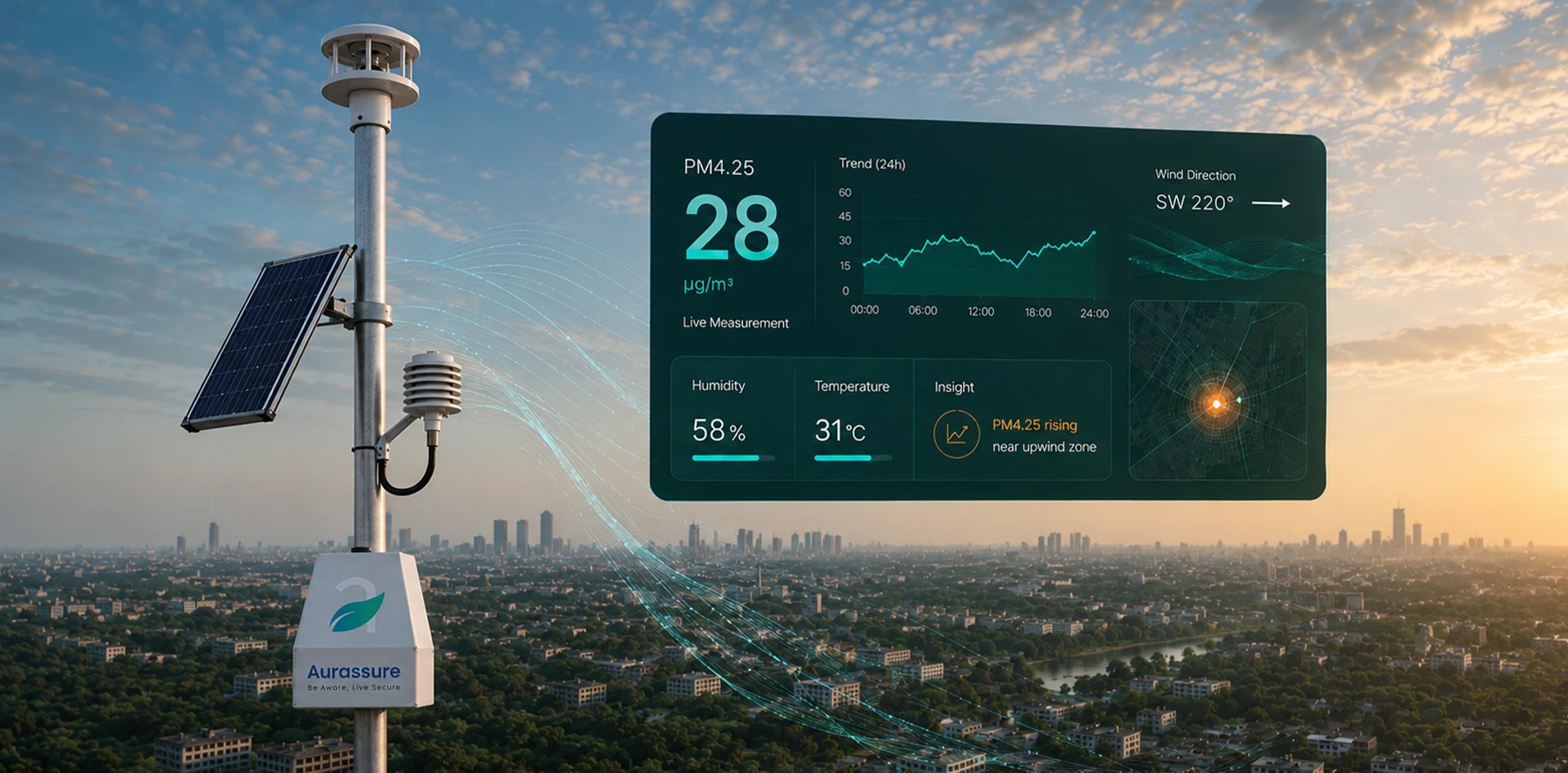

From PM4.25 Measurement to
Environmental Intelligence
The real value of particulate monitoring emerges when particle measurements are combined with context.
Aurassure’s Climate Intelligence Platform brings together particulate parameters including PM1.0, PM2.5, PM10, PM100 and TSP, alongside gaseous pollutants, weather data, historical records, forecasting, risk and insights.
This enables a broader approach:
Sensor data → Spatial context → Weather → Historical patterns → Analytics → Risk → Action
For example, a particulate increase can be evaluated alongside wind direction, temperature, humidity, location and operational activity to investigate whether an event is likely to be local, transported or operationally driven.
Should You Monitor PM4.25?
PM4.25 can add value when an organisation needs greater information about particulate-size distribution. But it should be evaluated as part of the overall monitoring objective.
Consider PM4.25 when:
- Intermediate particle-size information is relevant.
- You are conducting particulate characterization or research.
- Construction or industrial dust requires deeper characterization.
- You want additional information alongside PM2.5 and PM10.
But do not treat PM4.25 alone as a substitute for:
- Regulatory PM2.5/PM10 monitoring
- Source identification
- Spatial monitoring
- Weather intelligence
- Operational analysis
- Reference-based validation
The right question is therefore not simply:
“Can we measure PM4.25?”
It is:
“What decision will PM4.25 help us make?”
Download the complete blog as a PDF
Conclusion
PM4.25 provides an additional way to look at particulate matter between the familiar PM2.5 and PM10 fractions. Its value lies in providing more granular information about particle-size distributions—but that value depends heavily on measurement methodology, calibration, validation and context.
For construction sites, industrial facilities and environmental monitoring networks, particulate measurements become considerably more useful when combined with location, weather, operational activity and historical trends.
The future of air-quality monitoring is therefore not simply about collecting more particulate measurements.
It is about turning those measurements into environmental intelligence that explains what is happening, why it is happening and what action should follow.
Want to move from measuring air quality to understanding it?
Explore Aurassure’s environmental monitoring and climate intelligence solutions.
