GHI vs GTI: What Solar Asset Managers Need to Know About Irradiance Monitoring

Solar PV performance depends on more than the amount of electricity a plant generates. To understand why generation changes, solar operators also need visibility into the environmental conditions surrounding the asset. Among the most important parameters is solar irradiance, the amount of solar radiation reaching a surface.

Two measurements frequently used in solar applications are Global Horizontal Irradiance (GHI) and Global Tilted Irradiance (GTI).

So, GHI vs GTI: what is the difference, and why does it matter for solar asset management?

In simple terms, GHI measures solar irradiance received on a horizontal surface, while GTI measures irradiance received on a tilted surface. Since PV modules are typically installed at a specific tilt and orientation, understanding the difference between these measurements can provide valuable context for solar resource assessment, performance analysis and operational decision-making.

Listen the blog in 60 sec

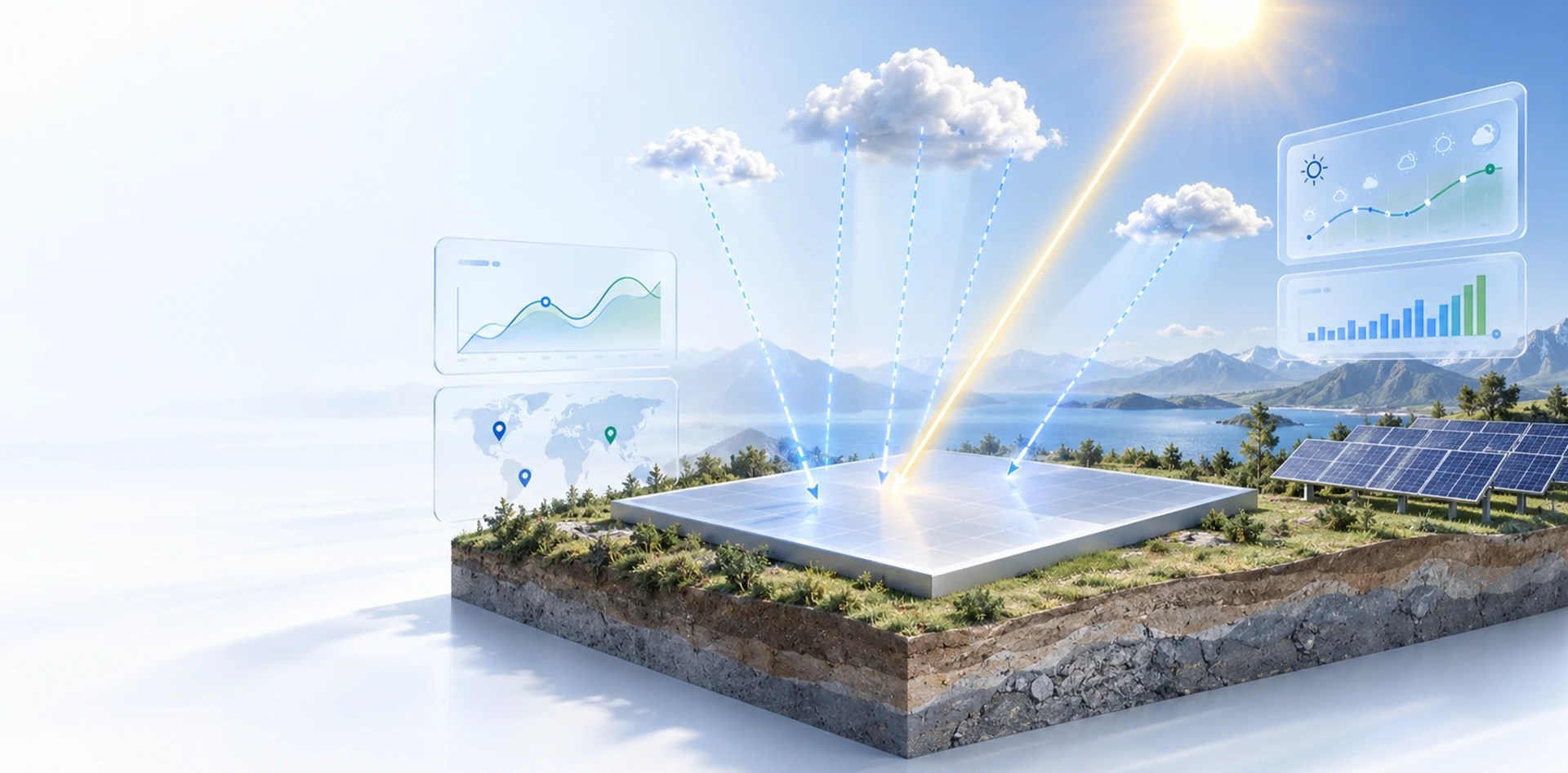

What Is GHI in Solar Energy?

Global Horizontal Irradiance (GHI) is the total solar irradiance received by a horizontal surface. It includes both direct solar radiation and diffuse radiation from the sky.

GHI is generally expressed in watts per square metre (W/m²) when referring to instantaneous irradiance.

It is widely used in solar resource assessment because it provides an indication of the solar radiation available at a location. Historical GHI data can help developers and analysts understand solar-resource characteristics before and during the operation of a project.

GHI can be useful for:

Solar resource assessment
Solar radiation monitoring
Weather and climate analysis
Solar generation modelling
Solar forecasting
Comparing solar conditions between locations
Understanding historical solar-resource patterns

For solar operators, GHI therefore provides an important view of the broader solar resource at a site.

However, there is an important consideration: the PV modules themselves are generally not horizontal.

This is where GTI becomes particularly relevant.

Download the complete blog as a PDF

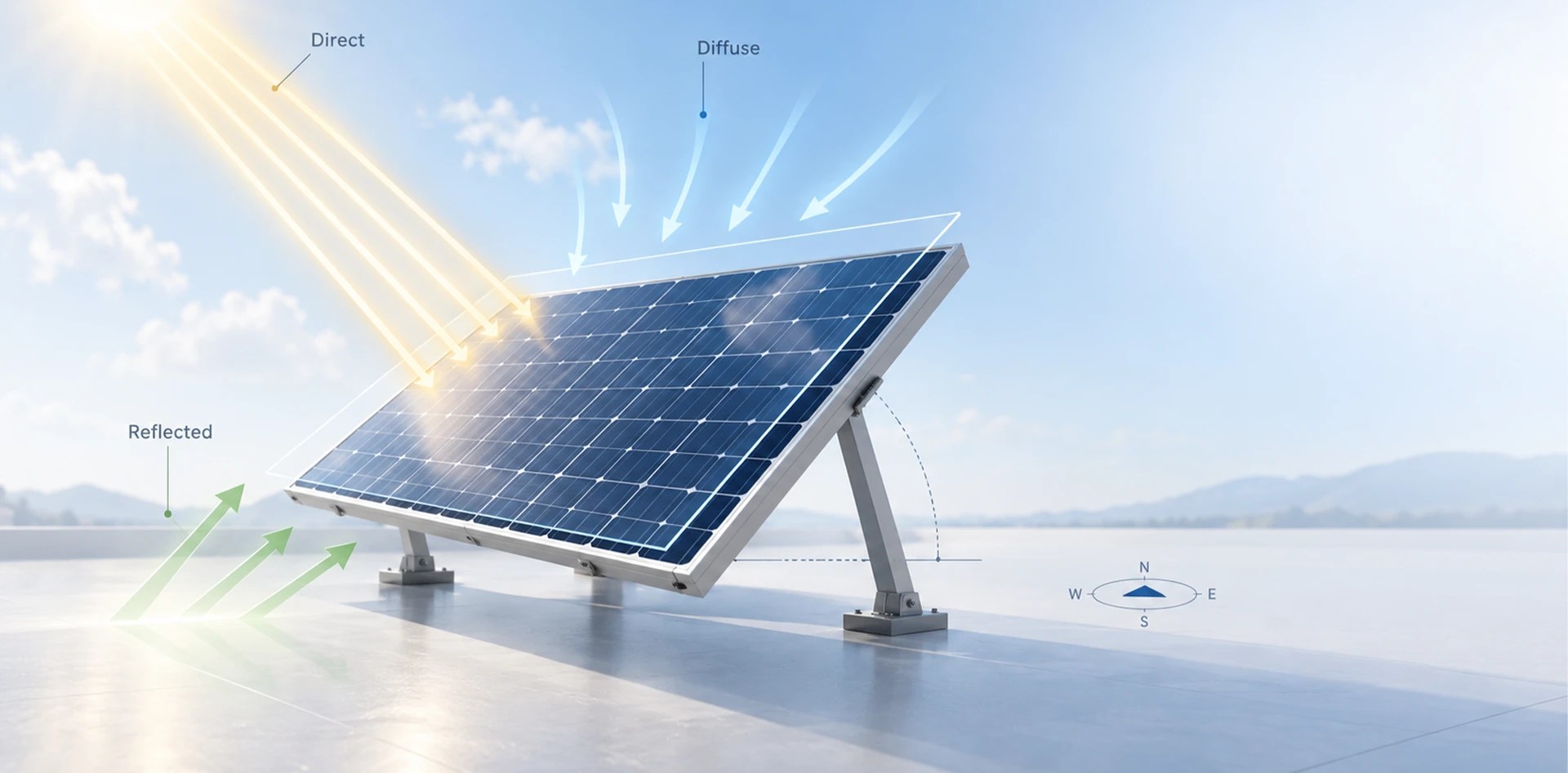

What Is GTI in Solar Energy?

Global Tilted Irradiance (GTI) is the solar irradiance received by a tilted surface.

In PV applications, GTI is closely associated with plane-of-array irradiance, or POA irradiance, the irradiance incident on the plane in which the PV modules are positioned.

Unlike GHI, GTI takes the orientation of the receiving surface into account. This includes factors such as the surface’s tilt and azimuth.

That makes GTI particularly relevant for understanding the irradiance available to a PV array.

GTI can include:

Direct solar irradiance
Diffuse sky radiation
Ground-reflected radiation

The actual amount received by a tilted surface depends on factors such as the sun’s position, array orientation, atmospheric conditions and ground reflectivity.

For solar PV performance monitoring, this distinction matters because the irradiance reaching the PV array may differ from the irradiance measured on a horizontal surface.

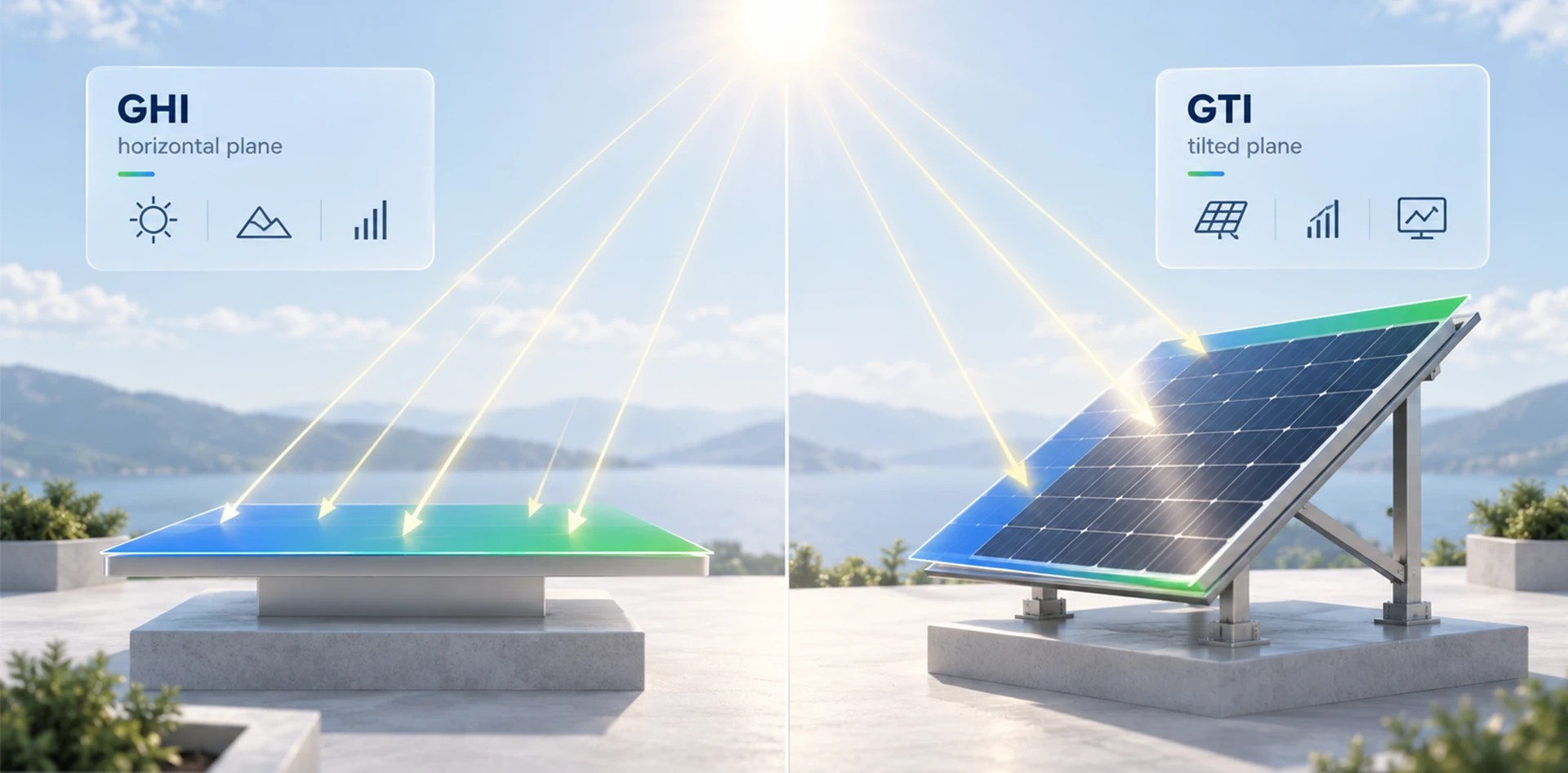

GHI vs GTI: What Is the Difference?

These are common source patterns rather than fixed rules because particulate pollution often comes from several sources at once.

The simplest way to understand the GHI and GTI difference is to look at the surface on which the measurement is taken.

Parameter	GHI	GTI
Full form	Global Horizontal Irradiance	Global Tilted Irradiance
Measurement plane	Horizontal	Tilted
Primary application	Solar resource assessment	PV performance analysis
Considers surface orientation	No	Yes
PV relevance	Provides broader solar-resource context	Provides irradiance context closer to the PV array
Common PV application	Resource and environmental analysis	Plane-of-array analysis

GHI tells you about solar irradiance on a horizontal plane. GTI tells you about irradiance received on a tilted plane.

This is the fundamental distinction between GHI vs GTI for solar PV.

Neither measurement should automatically be considered a replacement for the other. Their usefulness depends on what the solar operator is trying to understand.

Why Are GHI and GTI Important for Solar Plants?

Understanding why GHI and GTI are important for solar plants starts with understanding the relationship between irradiance and generation.

Solar irradiance represents the solar energy available to a PV system. Changes in irradiance can therefore influence the energy available for conversion by the modules.

But generation does not depend on irradiance alone.

Temperature, soiling, shading, module characteristics, system design and equipment conditions can also influence PV performance.

This is why solar irradiance monitoring becomes particularly valuable when it is considered alongside other environmental and operational information.

For example, if a plant experiences a drop in generation, an operator may want to determine:

Did solar irradiance decrease?
Did environmental conditions change?
Was the PV array affected by soiling?
Did temperature increase?
Was there an equipment or operational issue?

Irradiance measurements can provide part of the environmental context required for this type of solar plant performance analysis.

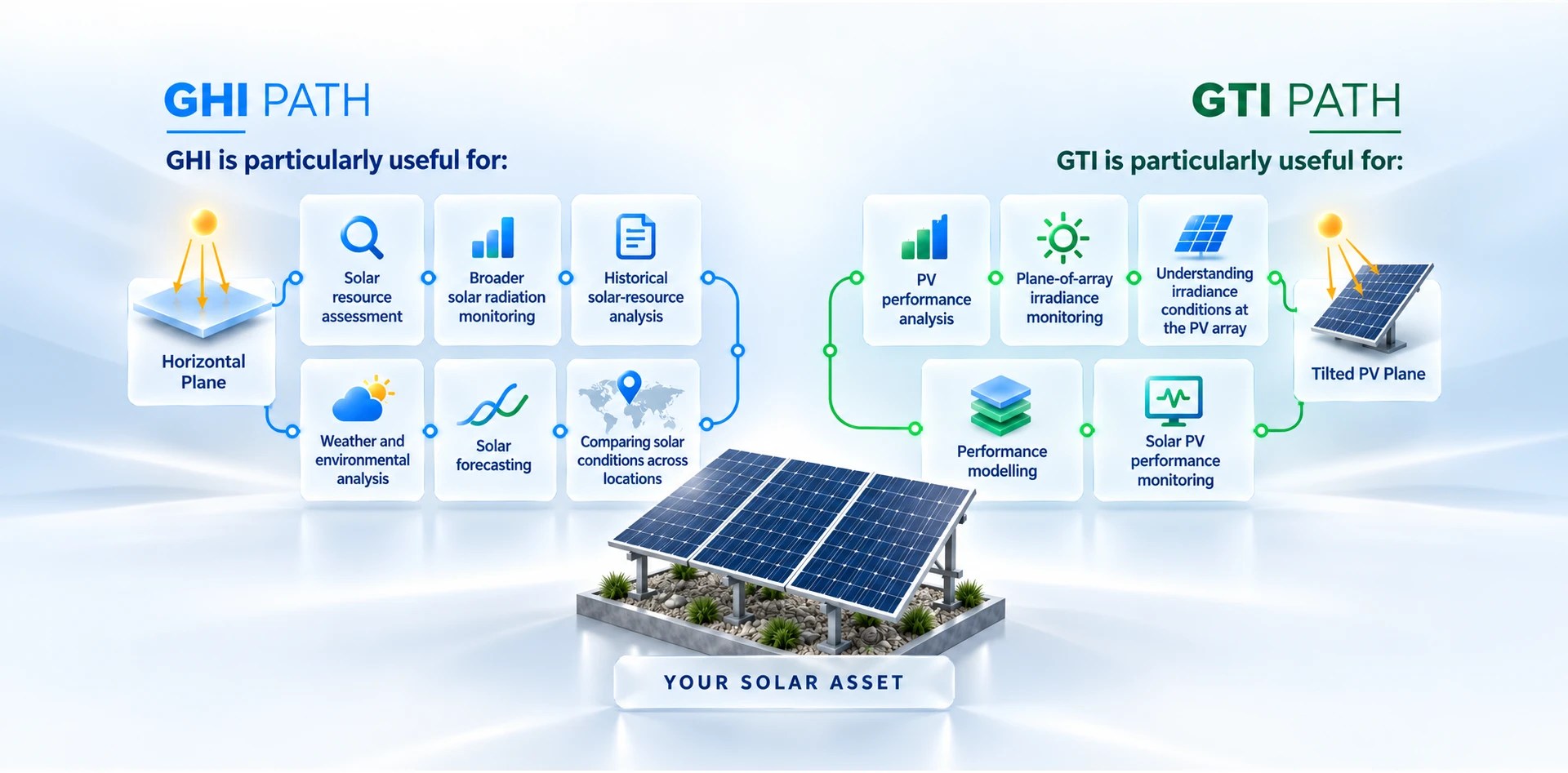

GHI vs GTI:

Which One Should a Solar Plant Monitor?

One of the most important questions in GHI vs GTI solar discussions is: which irradiance parameter is better for solar PV?

There is no universal answer.

The appropriate measurement depends on the application.

GHI is particularly useful for:

Solar resource assessment
Broader solar radiation monitoring
Historical solar-resource analysis
Weather and environmental analysis
Solar forecasting
Comparing solar conditions across locations

GHI is particularly useful for:

PV performance analysis
Plane-of-array irradiance monitoring
Understanding irradiance conditions at the PV array
Performance modelling
Solar PV performance monitoring

For a solar asset manager, the most useful approach is therefore not necessarily to choose one over the other.
It is to understand what each measurement represents and how the data can support the operational objective.

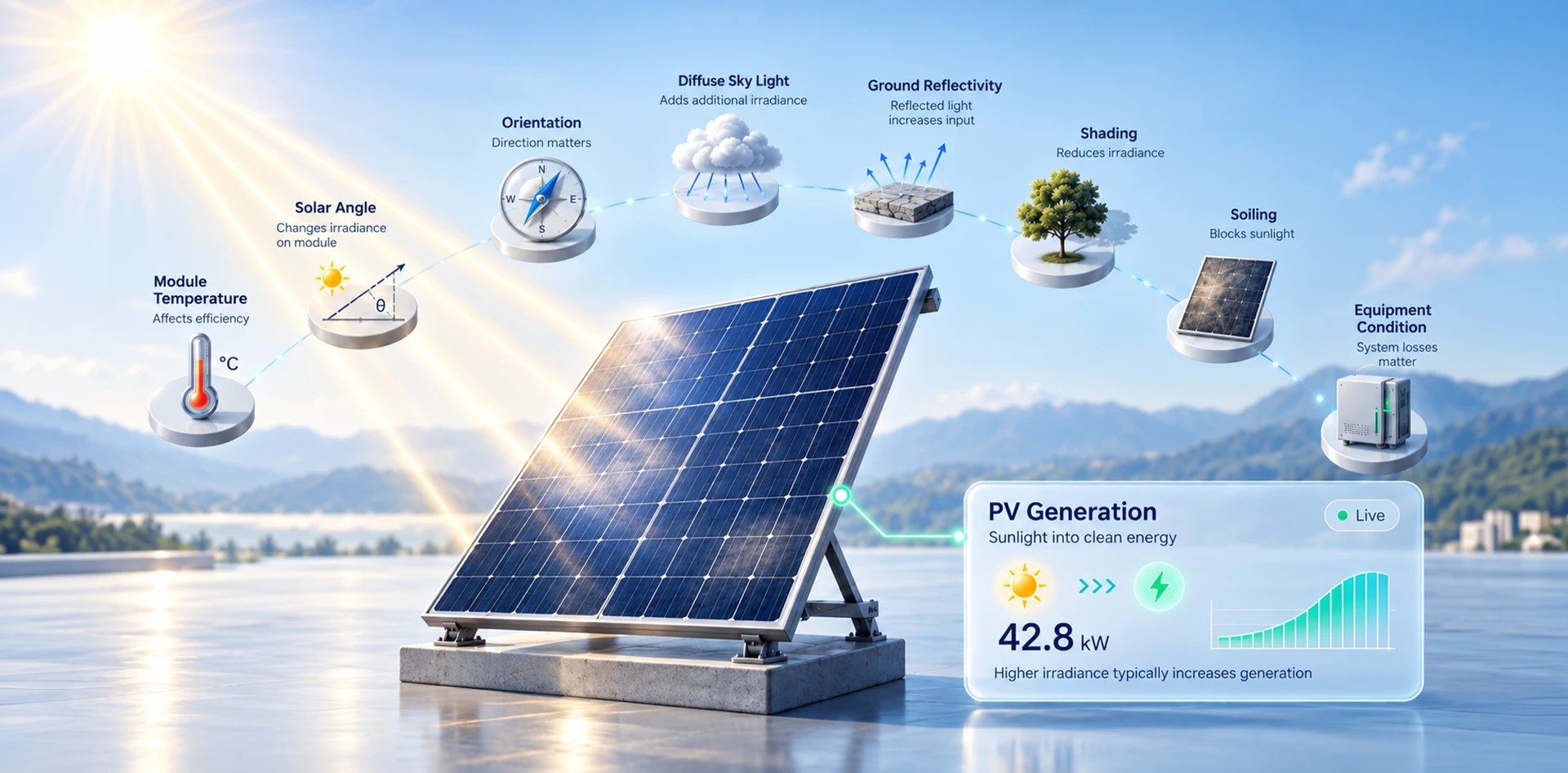

How Irradiance Affects Solar Panel Performance

Understanding how irradiance affects solar panel performance is fundamental to effective solar monitoring.

When available irradiance changes, the energy available to the PV system also changes. However, the relationship between irradiance and actual generation is influenced by several other factors.

These include:

Module temperature
Solar angle
Array orientation
Diffuse radiation
Ground reflectivity
Shading
Soiling
System and equipment conditions

This means that a generation drop cannot always be explained by looking at irradiance alone.

A more complete approach combines solar irradiance measurement with other environmental and operational parameters.

For example:

Irradiance data
+
Temperature data
+
Weather conditions
+
Site conditions
+
Generation data

can provide a stronger basis for investigating performance variations.

GHI, GTI and Other Parameters for

Solar Plant Performance Monitoring

A comprehensive solar power plant monitoring strategy should look beyond irradiance.

Environmental parameters such as temperature, humidity, wind speed, wind direction and rainfall can provide additional context around plant conditions.

Particulate and dust-related information can also be relevant where soiling is an operational concern.

This creates a broader monitoring layer:

GHI + GTI
↓
Temperature + Humidity
↓
Wind + Rainfall
↓
Dust / Particulate Conditions
↓
Generation & Asset Data
↓
Solar Plant Performance Analysis

This approach is particularly useful for geographically distributed solar portfolios where environmental conditions can vary considerably between locations.

Aurassure’s renewable-energy solution is positioned around this broader environmental context, combining site-level monitoring with intelligence to support operational decisions.

How to Monitor Solar Irradiance at a Solar Plant

So, how to monitor solar irradiance effectively?

Irradiance can be measured using appropriately configured instruments such as pyranometers or reference devices. For plane-of-array measurements, the measurement device should be appropriately oriented to represent the PV array’s receiving surface.

For solar operators, an effective solar energy monitoring system should consider:

Appropriate sensor placement
Sensor orientation
Calibration
Sensor maintenance
Data quality
Measurement frequency
Array configuration
Integration with other environmental measurements

The quality and reliability of the measurement are important. Poorly maintained or incorrectly positioned sensors can reduce the value of the data being used for performance analysis.

For this reason, irradiance monitoring for solar plants should be treated as part of the overall measurement architecture rather than as an isolated sensor deployment.

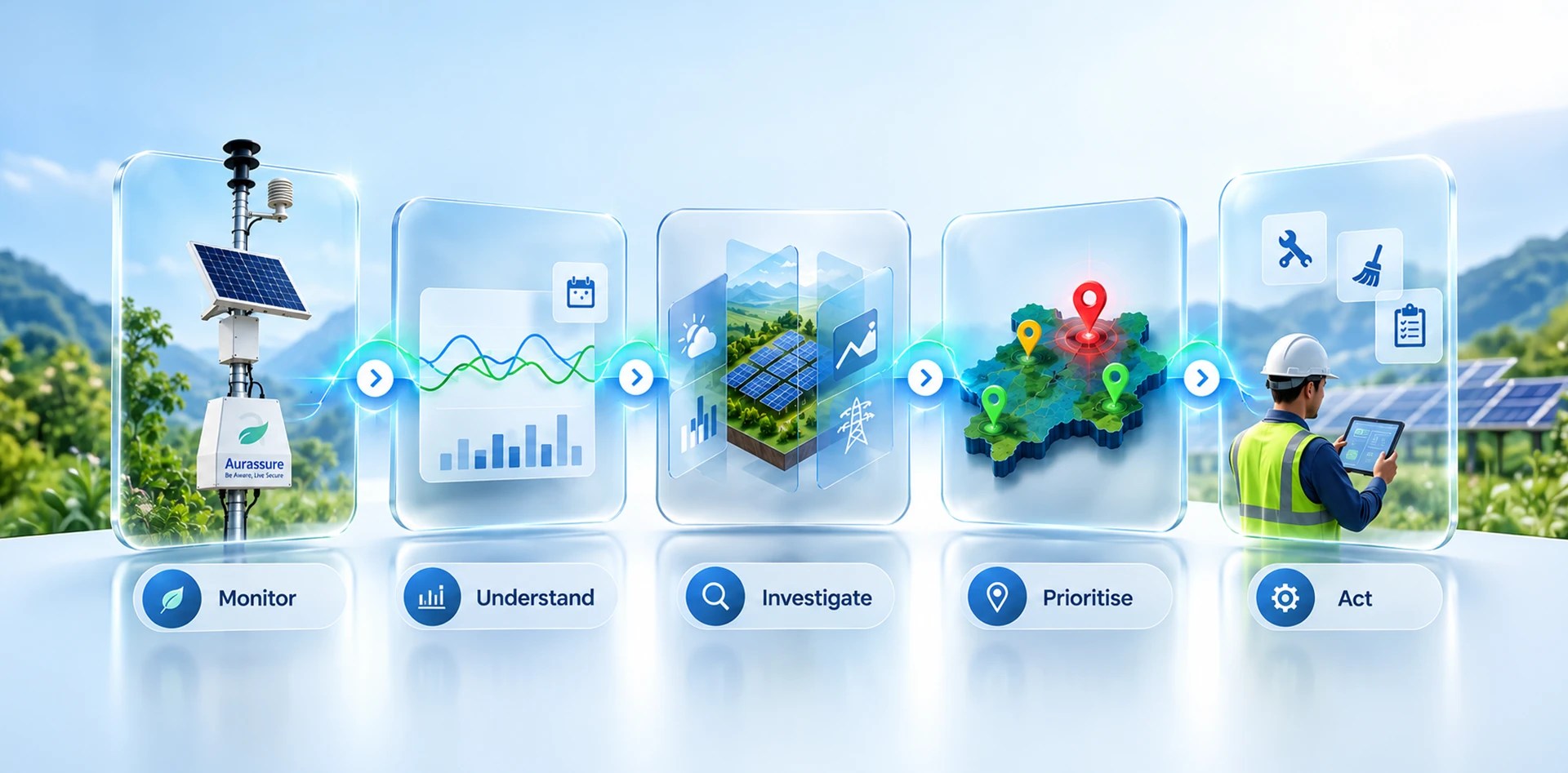

From Irradiance Monitoring to

Solar Asset Management

The real value of GHI and GTI emerges when the measurements become part of a broader solar asset management strategy.

Instead of simply asking:

“How much solar irradiance is available?”

asset managers can ask:

“What do current irradiance and environmental conditions tell us about asset performance?”

This creates a simple operational framework:

Monitor

Capture GHI, GTI and other environmental conditions.

Understand

Compare current measurements with historical conditions.

Investigate

Analyse environmental data alongside generation and asset information.

Prioritise

Identify sites or assets that require closer attention.

Act

Support maintenance, cleaning, inspection and operational decisions.

This is the transition from solar irradiance monitoring to solar asset intelligence.

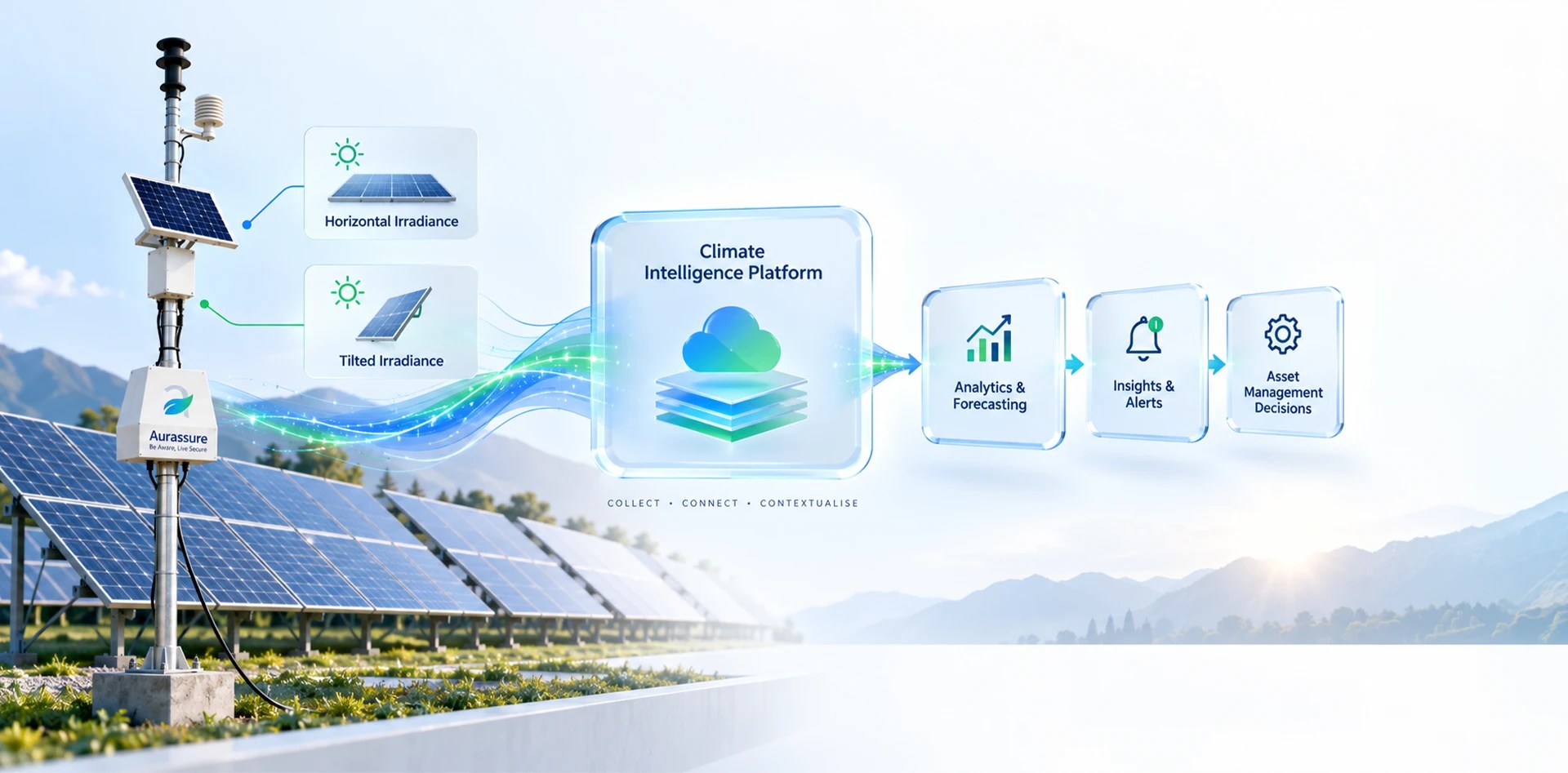

How Aurassure Supports

Solar PV Performance Monitoring

Aurassure provides a site-level environmental monitoring layer for renewable-energy assets.

Its AWS Expert supports monitoring of GHI and GTI alongside parameters including air temperature, relative humidity, wind speed and direction, precipitation, atmospheric pressure, soil conditions, UV and other environmental measurements.

This allows irradiance data to be viewed within a broader environmental context.

The workflow can be represented as:

AWS Expert
↓
GHI + GTI + Environmental Data
↓
Aurassure AI Platform
↓
Analytics & Forecasting
↓
Insights & Alerts
↓
Asset Management Decisions

Aurassure’s renewable-energy solution is designed to help teams move beyond collecting environmental data towards understanding site conditions, investigating performance variations and making more informed operational decisions.

Download the complete blog as a PDF

GHI vs GTI:

The Key Takeaway for Solar Asset Managers

So, GHI vs GTI: which should solar operators choose?

The answer depends on the question being asked.

GHI, or Global Horizontal Irradiance, provides information about solar irradiance received on a horizontal surface and is particularly useful for solar resource assessment and broader solar radiation analysis.

GTI, or Global Tilted Irradiance, provides information about irradiance received on a tilted surface and is particularly relevant to the plane in which a PV array receives solar radiation.

For solar asset managers, the real value lies in understanding both measurements and putting them into context with other environmental and operational data.

Effective solar plant performance monitoring isn’t just about measuring how much sunlight is available.

It is about understanding what the environmental conditions mean for the asset.

Measure the irradiance. Understand the environment. Connect the data. Make better decisions.
