PM10 Monitoring Around Stone Crushers: Where to Place Air Quality Sensors

Stone crushing generates dust at several stages. Crushing, screening, conveyor transfers, stockpiles, loading, unpaved roads and truck movement can all raise particulate levels around a site. Monitoring PM10 can help a stone-crushing unit understand these changes, but only when the monitor is placed in the right location.

A PM10 sensor beside the crusher answers a different question from a sensor at the site boundary. A monitor upwind can show the pollution already entering the area, while one downwind can help identify what is happening after air passes across the crushing site.

If a monitor is placed in the wrong location, the readings may not represent the conditions the site actually needs to assess. This can make it harder to separate background pollution from site-generated dust or identify where a PM10 increase is coming from.

For PM10 monitoring around stone crushers, placement therefore matters as much as measurement.

Listen the blog in 60 sec

Why PM10 Monitoring Matters Around Stone Crushers

PM10 refers to particulate matter with a diameter of 10 micrometres or smaller. These particles can remain suspended in the air and can be inhaled. Around stone-crushing sites, PM10 often comes from dust released during crushing, screening, loading, material handling and vehicle movement. Since these particles can move beyond the point where they are generated, monitoring PM10 helps sites understand how dust levels change across operational areas and site boundaries.

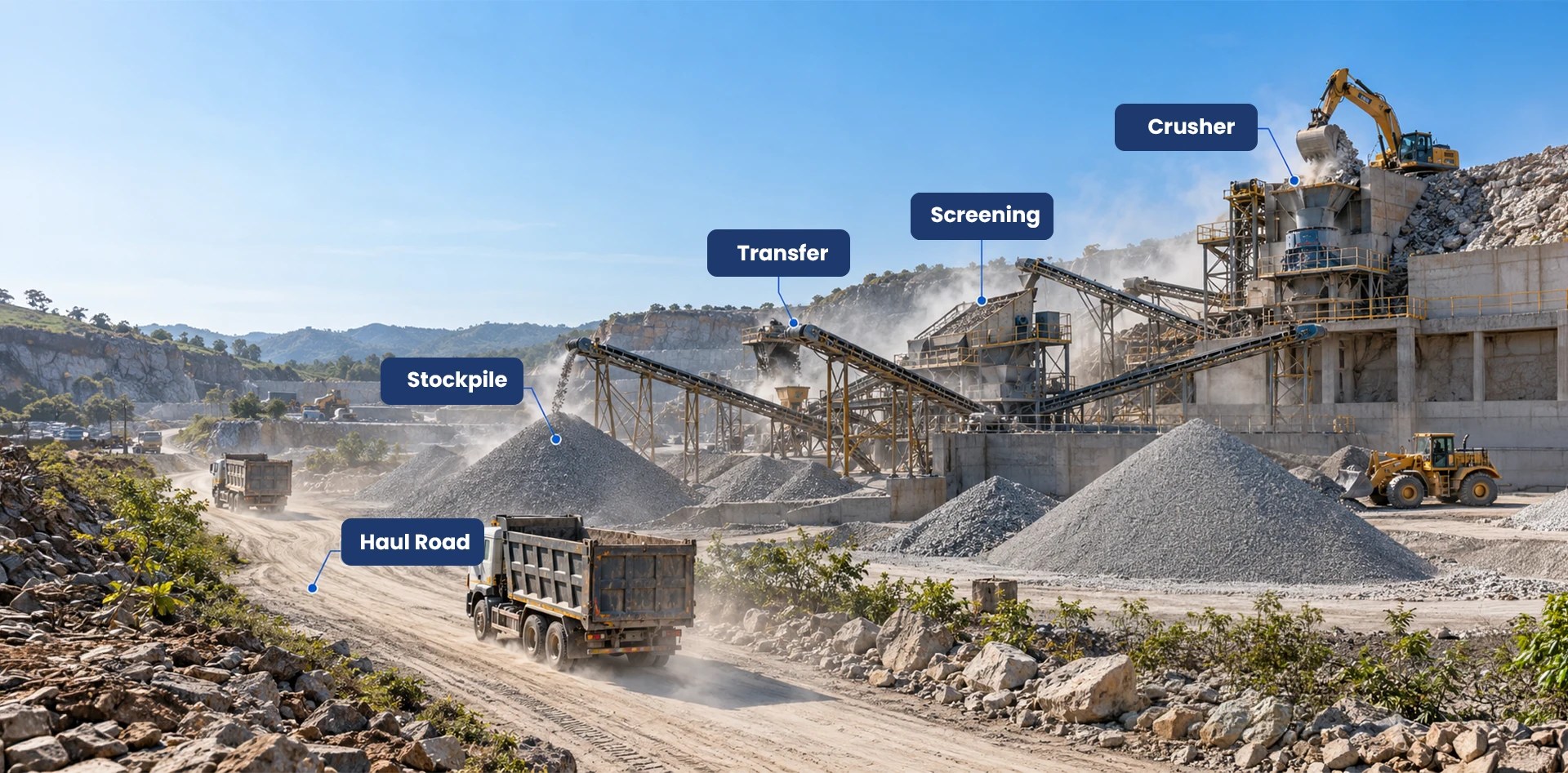

Common sources of PM10 include:

Primary and secondary crushers
Screening operations
Conveyor transfer points
Loading and unloading
Material stockpiles
Internal haul roads
Movement of trucks and heavy equipment

The amount of dust generated is not constant. It can change with production levels, vehicle movement, moisture, dust-suppression practices and weather. This means a reading taken at one point or during one inspection may not show how conditions change across the working day.

India’s National Ambient Air Quality Standards set the PM10 limit at 60 µg/m³ as an annual average and 100 µg/m³ as a 24-hour average.

Continuous PM10 monitoring can give site teams a clear picture of when particulate levels rise and whether those changes correspond with particular operations or weather conditions. How useful that data is depends heavily on where the monitors are placed.

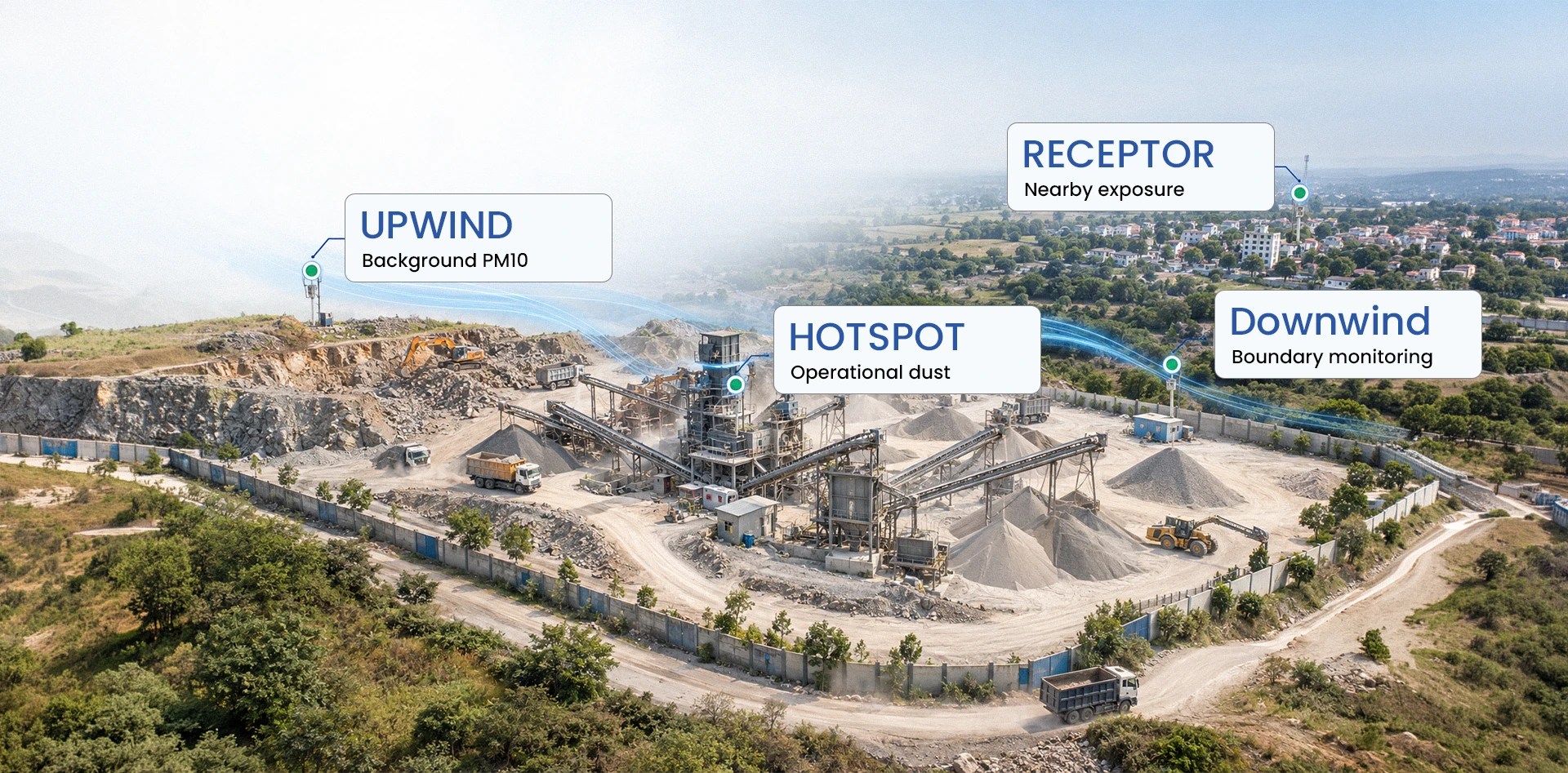

Where Should Air Quality Sensors

Be Placed Around a Stone Crusher?

There is no single monitoring location that can represent conditions across an entire stone-crushing site. PM10 levels can vary between the crusher, haul roads, stockpiles, site boundaries and surrounding areas. Sensor locations should therefore be chosen based on what the site needs to understand: background pollution, dust moving towards the boundary, operational hotspots or conditions near sensitive receptors. Each monitoring location should have a clear purpose.

1. Upwind: Measure the Background PM10 Level

Place the upwind PM10 monitor where incoming air reaches the site before passing over the main crushing operations. The purpose is to understand background conditions.

This matters because PM10 measured around a stone crusher may not come entirely from the crusher itself. Nearby roads, mines, exposed land, other industries or other crushing units can also contribute. An upwind monitor gives the site a reference point.

If PM10 is already elevated before air reaches the crusher, this context becomes important when interpreting readings elsewhere.

2. Downwind: Monitor Dust Moving Towards the Boundary

A downwind monitoring location is particularly important for understanding whether particulate levels increase after air moves across the crushing area. This point should generally be located along the boundary in the direction towards which emissions are likely to travel.

For instance, consider an upwind monitor recording relatively stable PM10 while a downwind monitor records a substantial increase during active crushing. That difference gives the site team a clear reason to investigate what was happening between the two monitoring points.

The easiest boundary location is not necessarily the best one.

Sensor placement should account for:

Prevailing wind direction
Location of crushers and screens
Stockpile areas
Haul roads
Loading zones
Site boundaries
Nearby receptors

CPCB’s Environmental Guidelines for Stone Crushing Units, 2023 state that online or manual ambient air monitoring systems should be installed in crusher zones in upwind and downwind directions, as per CPCB/SPCB guidelines. This supports the use of both background and downwind monitoring when planning sensor locations around a stone-crushing site.

3. Near Dust-Generating Activities: Identify Operational Hotspots

Boundary monitoring tells you what is happening at the edge of the site. It may not tell you which activity caused the change. Additional PM10 sensors can therefore be placed near important operational areas such as:

Crushers and screens
Conveyor transfer points
Loading areas
Stockpiles
High-traffic haul roads

These monitors help identify where PM10 spikes occur repeatedly across the site.

For example, if PM10 repeatedly increases during truck movement on an internal road, the site can review road wetting, vehicle speed or surface conditions. If concentrations increase around a transfer point, containment or suppression at that specific location may need attention.

A hotspot sensor should not, however, be treated as representative of general ambient air quality around the entire site.

4. Towards Nearby Sensitive Receptors

The monitoring plan should also consider what lies outside the stone crusher. Homes, villages, schools, workplaces or other sensitive receptors may be located in one particular direction from the site.

Monitoring in this direction can show how PM10 levels change between the site and nearby receptors. This becomes particularly useful when combined with wind direction.

Why Wind Direction Matters For PM10 Monitoring

A PM10 monitor tells you how much particulate matter was measured at that point. It does not automatically tell you where that particulate matter came from.

Wind direction offers part of that missing context. Suppose PM10 rises sharply at a boundary monitor. If the wind is moving from the crusher towards that monitor, site operations may be relevant to the increase. If the wind is blowing from outside the facility towards the same monitor, an external source may also need to be considered.

Wind direction also changes. A monitor that is downwind in the morning may become upwind later in the day. For this reason, PM10, wind speed and wind direction are more useful when viewed together.

This is especially important when investigating short-duration dust events, complaints or recurring pollution patterns.

PM10 Monitoring Requirements

for Stone Crushers in India

Stone crushers in India operate under environmental requirements that include pollution-control and monitoring provisions.

The Central Pollution Control Board’s Environmental Guidelines for Stone Crushing Units, 2023 state that stone-crushing units should obtain Consent to Establish (CTE) and Consent to Operate (CTO) from the relevant State Pollution Control Board or Pollution Control Committee.

The guidelines also specify that online or manual ambient air monitoring systems should be installed in crusher zones in upwind and downwind directions as per CPCB/SPCB guidelines.

There is also a separate standard for suspended particulate matter associated with stone-crushing process equipment. Under the applicable environmental standard, SPM measured between 3 and 10 metres from any process equipment of a stone-crushing unit should not exceed 600 µg/m³.

This should not be confused with the National Ambient Air Quality Standard for PM10.

The process-area SPM standard and the ambient PM10 standard measure different things and apply in different contexts:

Standard	What it applies to	Limit
Process-area SPM standard	Suspended particulate matter measured 3–10 metres from stone-crushing process equipment	600 µg/m³
Ambient PM10 NAAQS	PM10 concentration in ambient air	100 µg/m³ over 24 hours and 60 µg/m³ annually

Units must also follow any additional monitoring or pollution-control conditions included in their CTE, CTO or directions issued by the relevant SPCB/PCC.

Requirements can be more specific in some regions. In Delhi-NCR, CAQM Direction No. 103, issued on 19 August 2026, introduced additional controls for stone-crushing units across the NCR. The direction requires the dust-control measures in CPCB’s 2023 guidelines to be incorporated into Consent to Operate conditions and strengthens compliance through continuous remote monitoring, PM2.5 and PM10 sensors, video surveillance and wheel-washing facilities.

Stone crushers should therefore check both the national CPCB guidelines and any additional conditions issued by the relevant SPCB, PCC or regional authority when planning a monitoring system.

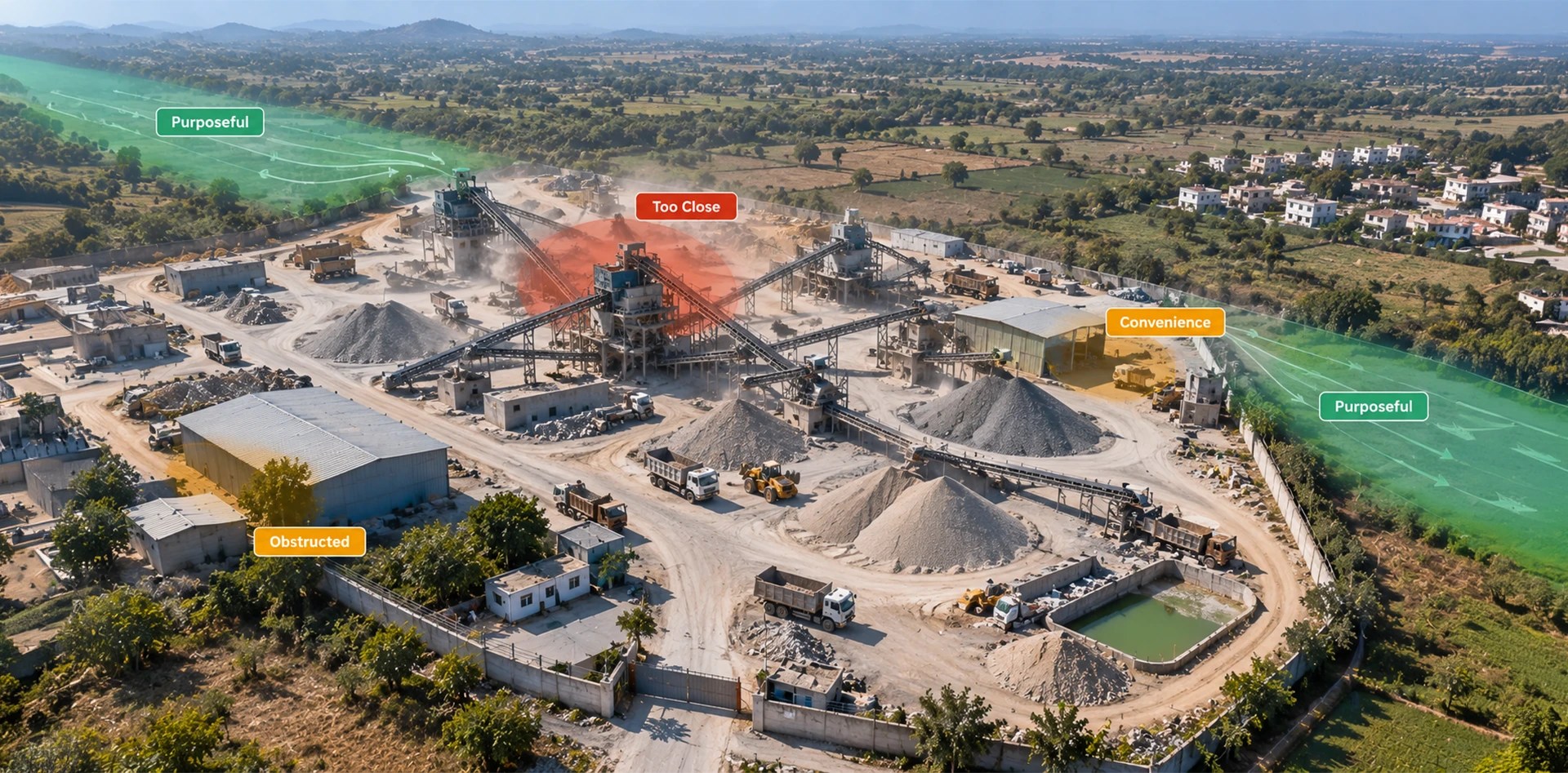

Common Mistakes in PM10 Sensor Placement

Even a good air quality monitor can provide limited information if it is installed in the wrong place. One common mistake is choosing a location simply because electricity or connectivity is easily available.

Other problems include placing all monitors close to the crusher, having no background monitoring point, ignoring prevailing wind direction or putting a monitor behind buildings and walls that obstruct normal airflow.

Another mistake is expecting one monitor to answer every question.

A monitor beside a crusher can help identify operational dust. A boundary monitor is better suited to understanding conditions at the edge of the facility. An upwind monitor helps establish the background.

For larger or more complex sites, these monitoring objectives may call for multiple locations. Choose each sensor location based on the monitoring need, not just site convenience.

For a broader look at this approach, Aurassure’s guide to fenceline monitoring explains how monitoring networks can be planned around industrial boundaries and potential emission sources.

Using Aurassure Infra for

PM10 Monitoring Around Stone Crushers

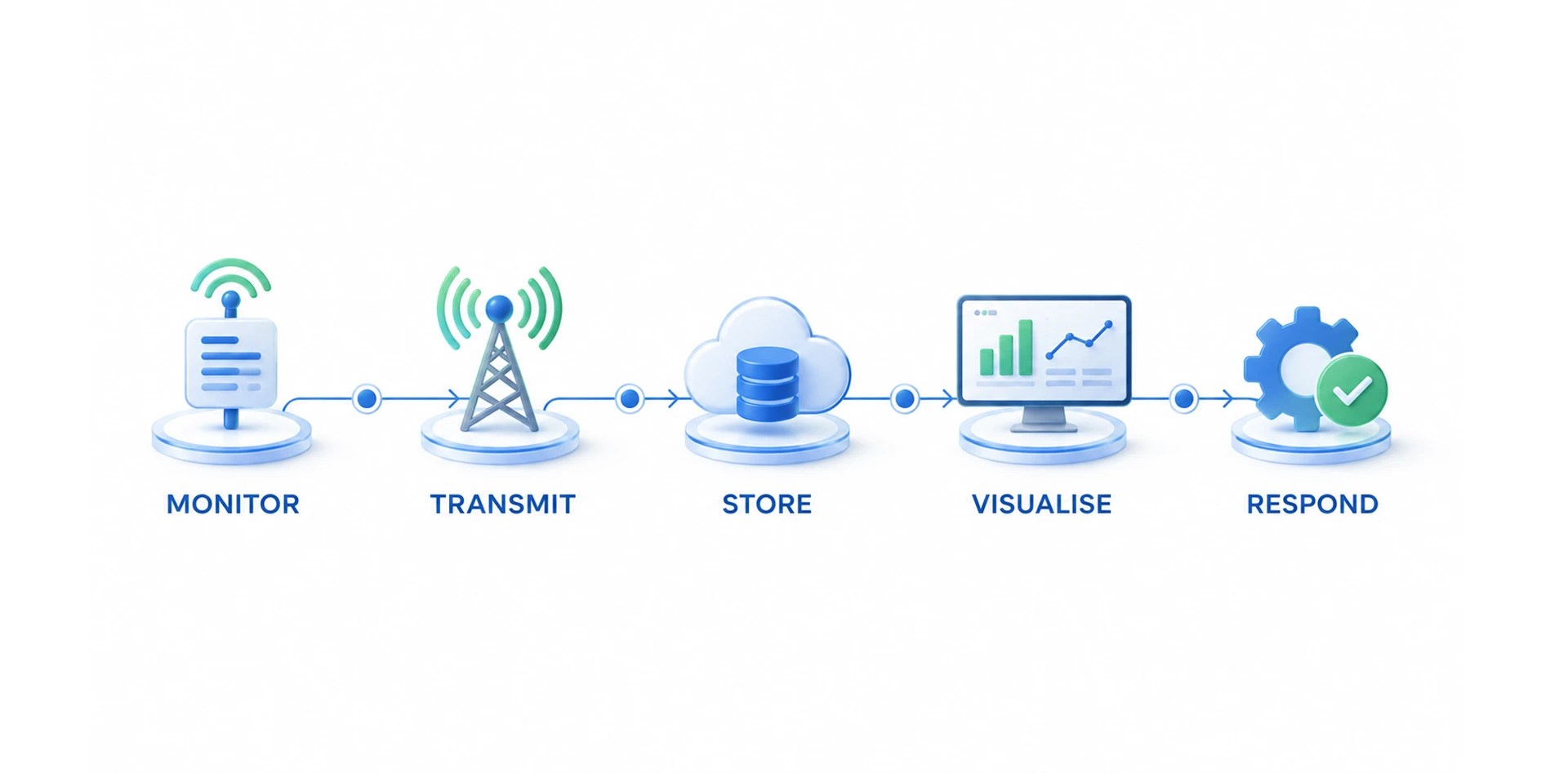

Aurassure Infra continuously monitors PM2.5, PM10, wind speed and wind direction at selected upwind, downwind, boundary and operational locations. Aurassure Infra follows a five-step monitoring flow:

Monitor particulate and weather conditions continuously.
Transmit data through 4G LTE, Wi-Fi, Ethernet or RS485.
Store readings locally and on the cloud.
Visualise live data, trends and multiple monitoring points on one platform.
Respond quickly with configurable threshold alerts.

1) Connect PM10 with wind conditions

Infra combines PM10 readings with wind speed and direction. When concentrations rise, teams can check whether the monitor was upwind or downwind and investigate likely sources more effectively.

2) Compare multiple monitoring locations

Teams can compare upwind, downwind and operational readings from a single web and mobile platform, track historical trends and identify locations with recurring PM10 spikes.

3) Act on threshold exceedances

Configurable alerts flag changing conditions, helping teams investigate crushing, loading, truck movement, road dust, stockpile handling or dust-suppression performance at the time of the event.

4) Deploy across outdoor industrial sites

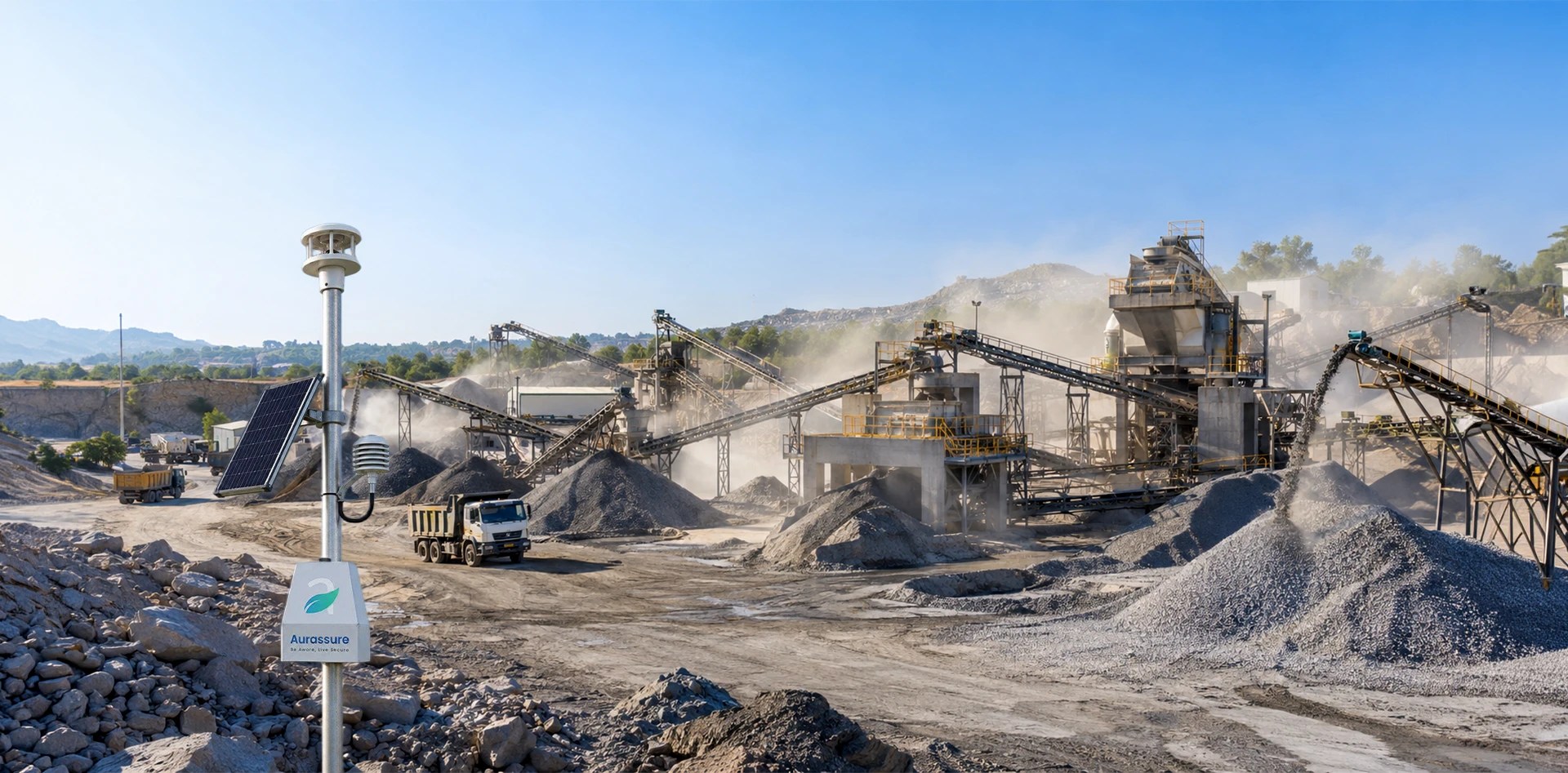

With an IP65 enclosure, flexible mounting, AC/DC/solar power options and configurable transmission intervals, Infra can be deployed around the actual site layout instead of being restricted to convenient power or building locations.

For stone crushers, this builds a link between PM10 levels, wind conditions, location and site activity, making the monitoring data more useful for day-to-day dust management.

Conclusion

PM10 monitoring is most useful when each monitoring location serves a clear purpose.

Use upwind monitoring to understand background conditions, downwind monitoring to track changes after air crosses the site, and additional monitoring near operational hotspots or sensitive receptors where needed.

When PM10 readings are viewed alongside wind conditions, teams can better identify where dust levels are rising, investigate likely sources and decide where dust-control measures may need attention.
