Upwind vs Downwind Monitoring: A Smarter Approach to Dust Control
A construction site records a PM10 concentration of 180 µg/m³ near its boundary. Excavation is underway, trucks are moving through the site, and dust-control measures are in place. But does this reading indicate pollution generated by construction activities, or is particulate matter entering the site from nearby roads and other surrounding sources?
For developers and EHS teams, this distinction matters especially when they investigate dust complaints, evaluate control measures, or explain elevated readings to environmental authorities. A single monitoring location can confirm high particulate concentrations, but it cannot reliably identify the source of the pollution.
Upwind vs downwind monitoring helps construction teams compare particulate concentrations before and after air passes over a site. This blog explains how to interpret PM10 differences and use the findings to support dust control decisions.
Listen the blog in 60 sec
What Is Upwind vs Downwind Monitoring in
Construction Dust Control?
Upwind and downwind monitoring involve measuring particulate concentrations at different locations relative to the wind direction and the construction activities being assessed. The aim is to distinguish existing background pollution from dust that may come from construction activities.
Upwind Monitoring
Upwind monitoring measures particulate matter in the air before it reaches the construction activity. The monitor is positioned on the side from which the wind approaches, capturing incoming pollution from surrounding areas. This gives teams a reference for comparing PM10 readings across the site.
For instance, a construction site near a busy highway may already experience elevated PM10 concentrations due to road dust, vehicle emissions and other nearby activities. An upwind monitor helps assess the particulate pollution entering the site, reducing the risk of attributing all elevated readings to construction operations. However, the monitoring location must be selected carefully to avoid interference from unrelated local dust sources.
Downwind Monitoring
Downwind monitoring measures particulate concentrations after air passes through a construction site. The monitor sits in the direction the wind is blowing, where it measures dust carried from construction activities such as excavation, demolition, material handling and vehicle movement, along with pollution from other sources.
When downwind PM10 levels remain higher than upwind readings taken at the same time, it may indicate that construction activities are adding dust to the surrounding air. However, nearby roads and other pollution sources can also affect these readings. Construction teams should therefore compare both measurements and check wind conditions before deciding whether the site is responsible for the increase.
| Parameter | Upwind Monitoring | Downwind Monitoring |
|---|---|---|
| Location | Where air approaches the construction activity | Where air travels after passing the construction activity |
| Primary purpose | Establish incoming/background pollution | Assess particulate concentrations along the outgoing airflow |
| PM10 interpretation | Pollution present before air crosses the work area | Pollution measured after air passes the work area |
| Role in dust control | Provides a reference for assessing potential site contribution | Helps identify possible increases requiring investigation |
| Key consideration | Avoid interference from nearby emission sources | Account for additional sources along the airflow |
Upwind and downwind monitoring locations depend on wind direction. When the wind changes direction, a monitor that was previously upwind may become downwind, and vice versa. Construction teams should therefore track local wind conditions to interpret PM10 readings correctly and assess potential dust contributions.
How Can Upwind and Downwind
PM10 Readings Help Identify Dust Sources?

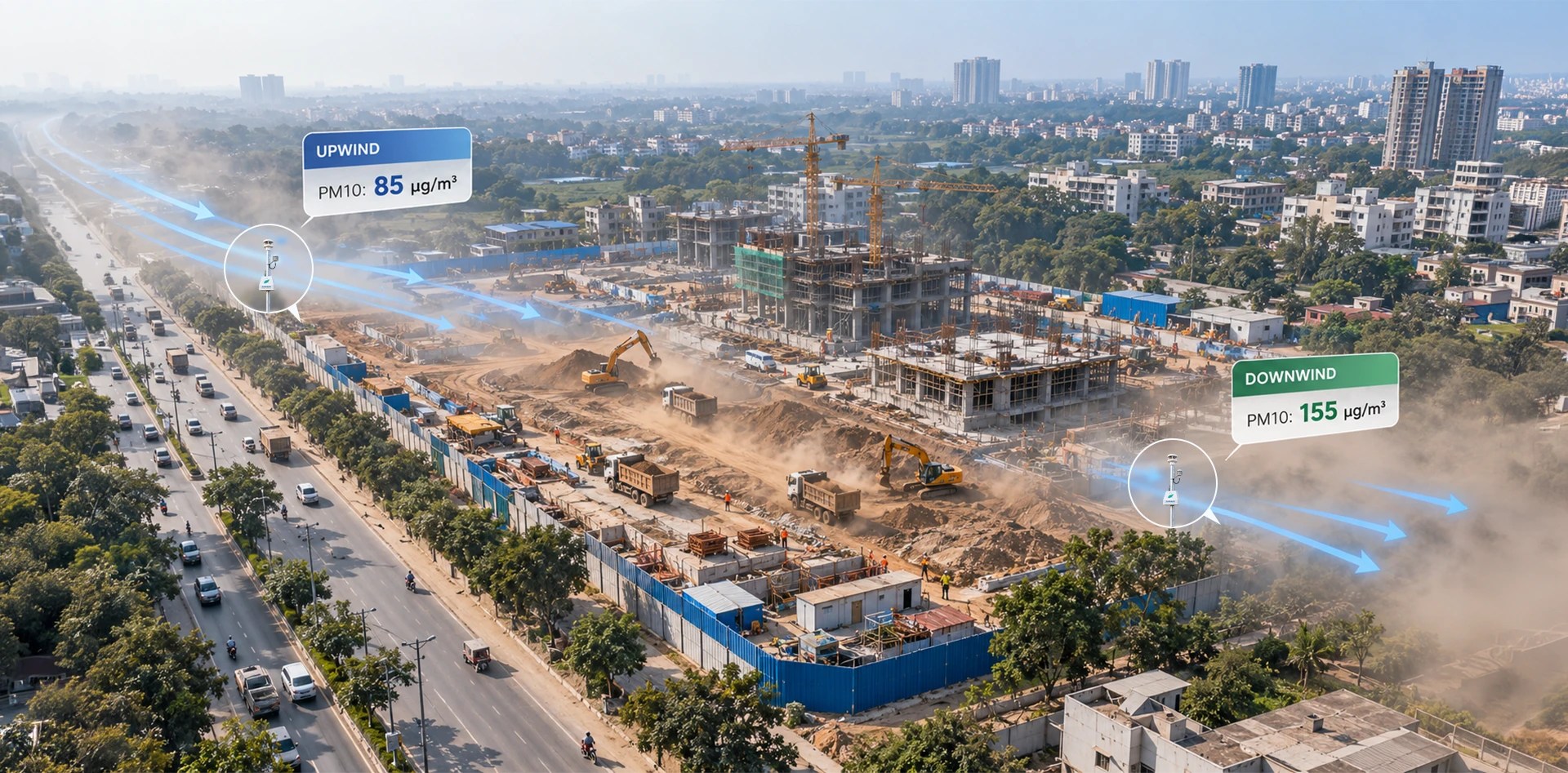

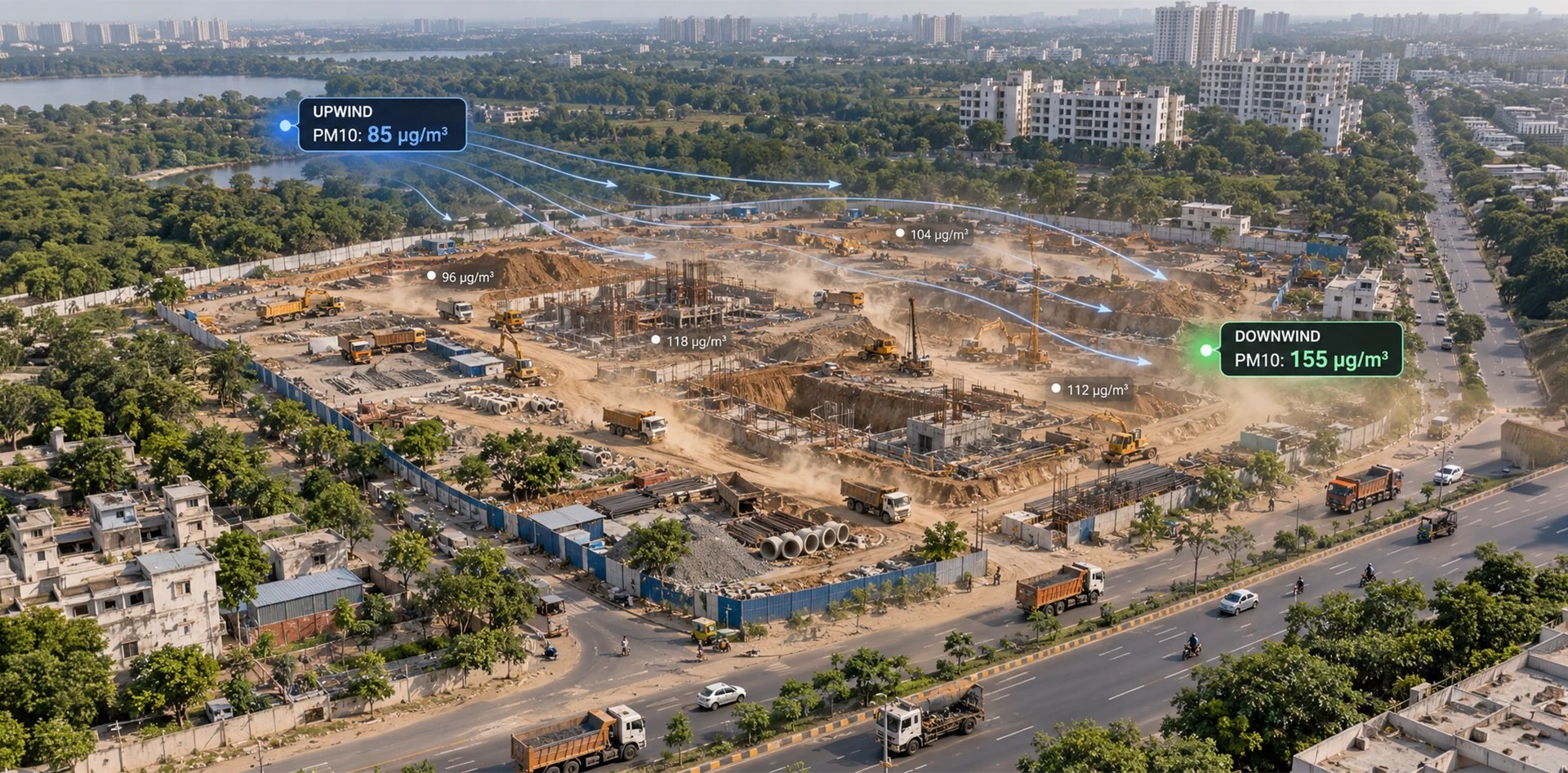

Comparing upwind and downwind PM10 readings taken at the same time helps construction teams identify possible dust contributions from activities such as excavation, material handling and vehicle movement. For example, if the upwind monitor records 85 µg/m³ and the downwind monitor records 155 µg/m³, the difference is 70 µg/m³. This suggests that additional particulate matter may have entered the air between the two locations, although it does not confirm that construction activities caused the entire increase.
A study published in the September 2020 DFCCIL Journal examined PM10 and PM2.5 concentrations at a Dedicated Freight Corridor construction site in Dadri, Uttar Pradesh. Researchers monitored air quality in upwind and downwind directions between January 2018 and September 2020 to understand particulate pollution around the project.

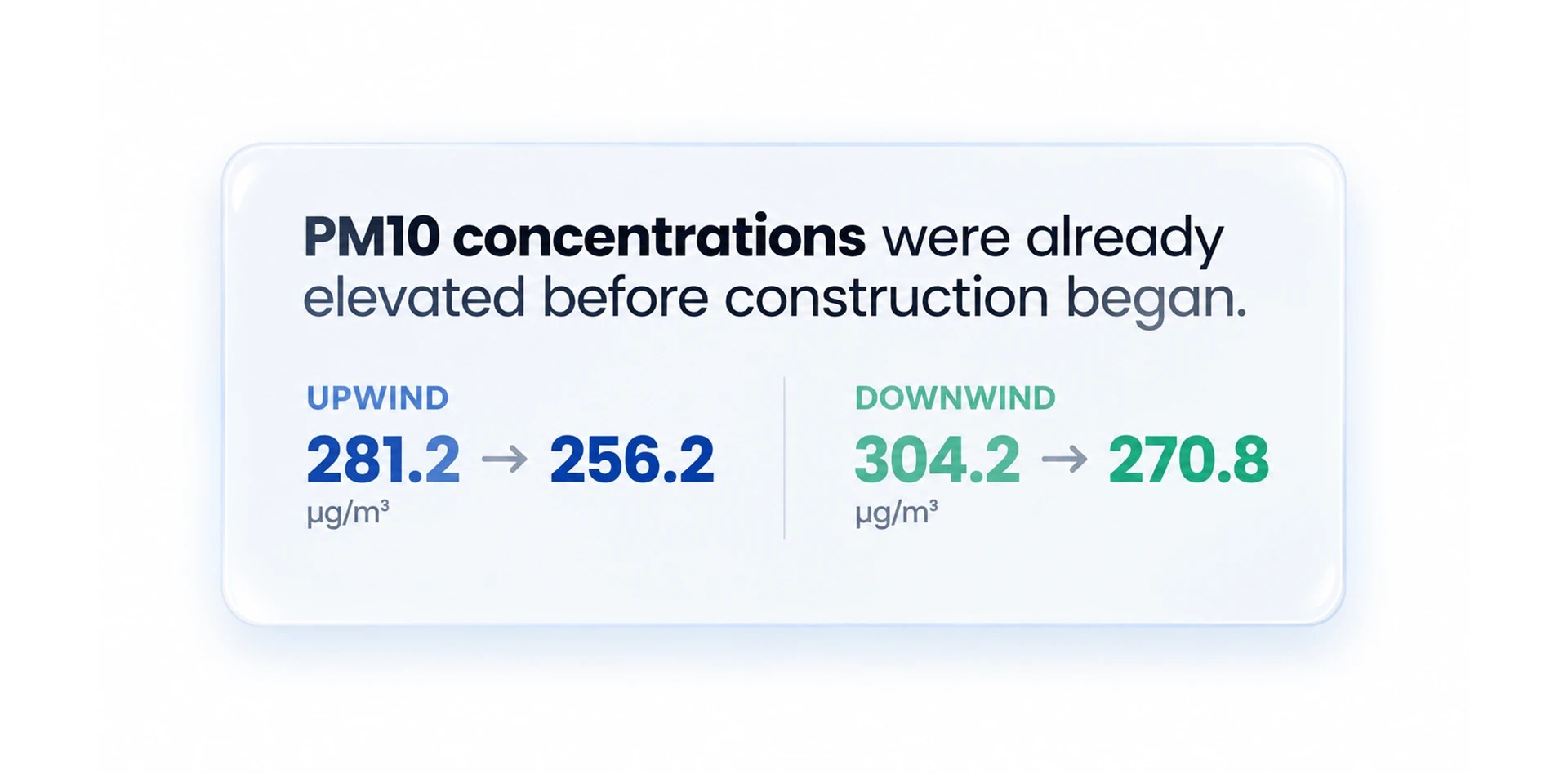

During the pre-construction monitoring period in January 2018 – October 2018, the study recorded PM10 concentrations of 281.2 to 256.2 µg/m³ upwind and 304.2 to 270.8 µg/m³ downwind. The findings show that PM10 concentrations were already elevated around the project and differed between upwind and downwind locations before construction began.
For construction teams, this highlights why background pollution, wind conditions and activity records matter when assessing dust control measures. A higher downwind PM10 reading alone does not prove that the project caused the increase.
The Central Pollution Control Board (CPCB) prescribes 24-hour average ambient air quality standards of 100 µg/m³ for PM10 and 60 µg/m³ for PM2.5 under India’s National Ambient Air Quality Standards (NAAQS). These standards apply to 24-hour average concentrations and should not be treated as limits for individual real-time or short-interval sensor readings. Construction sites may also have separate dust-control and monitoring requirements depending on their location, project approvals and applicable regulations.
CPCB standards provide a benchmark for assessing ambient particulate pollution, while upwind and downwind monitoring adds site-specific context. By combining comparative PM10 monitoring with wind conditions and construction activity records, EHS teams can better investigate potential dust contributions and make informed dust-control decisions.
What Makes Upwind and Downwind
Monitoring Data Reliable?
Upwind and downwind PM10 comparisons are useful only when both monitors collect reliable data under comparable conditions. Poor sensor placement or inaccurate readings can make it harder to identify possible dust sources.
Several factors must be considered:
- Wind direction and speed: Track local wind conditions to confirm which monitor is upwind or downwind during the measurement period.
- Nearby pollution sources: Account for traffic, neighbouring construction projects and other activities that may influence PM10 concentrations.
- Sensor calibration: Calibrate and maintain both monitors consistently to reduce measurement differences caused by instrument performance.
- Measurement timing: Compare readings from the same time intervals, particularly during excavation, loading or other short-duration activities.
- Monitoring locations: Choose positions that represent incoming and outgoing air without unnecessary interference from nearby structures or isolated dust sources.
How Can Upwind vs Downwind Monitoring
Improve Dust Control Decisions?
Upwind and downwind monitoring helps construction teams evaluate dust-control measures by comparing particulate concentrations before and after corrective action. Rather than relying on individual PM10 readings, EHS teams can examine whether the difference between upwind and downwind concentrations changes over time.
Consider a site where downwind PM10 readings repeatedly exceed upwind levels during vehicle movement. The EHS team investigates the haul road and increases dust suppression. If the upwind–downwind difference subsequently decreases under comparable wind conditions, traffic activity and operating conditions, it may suggest that the intervention is helping reduce dust emissions.
However, a reduction in downwind PM10 alone does not confirm that dust-control measures have become more effective. For example, if both upwind and downwind concentrations decrease by similar amounts, the change may reflect lower background pollution rather than improved dust suppression.
To assess the intervention more reliably, teams should examine whether the reduction is sustained during similar construction activities, whether wind direction has remained consistent, and whether traffic intensity or other nearby dust sources have changed. A smaller upwind–downwind difference across repeated, comparable monitoring periods provides stronger evidence of improvement, although it cannot establish the effectiveness of a particular measure on its own.
By reviewing these patterns alongside wind data and construction activity records, EHS teams can decide whether to maintain existing controls, adjust dust-suppression practices or investigate other potential sources.
How Aurassure Trust Optimises
Upwind and Downwind Dust Monitoring
For construction sites, effective upwind and downwind monitoring requires consistent PM10 and PM2.5 measurements alongside local wind data. Together, these measurements help EHS teams interpret particulate movement, assess potential dust contributions and evaluate dust-control performance.

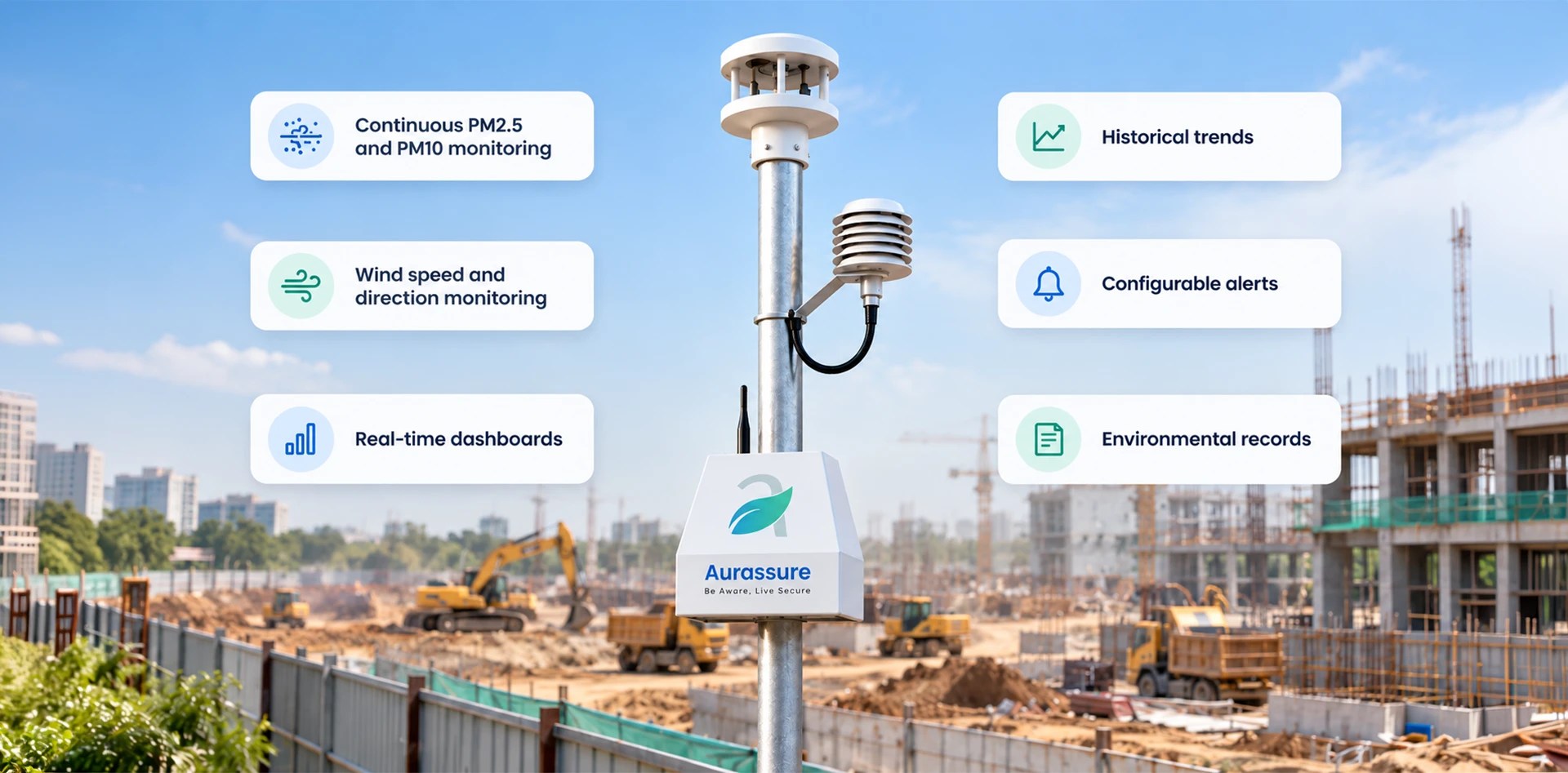

Aurassure Trust supports this requirement through real-time particulate monitoring, 4G connectivity and a central environmental intelligence platform. It measures PM2.5, PM10, temperature and humidity, with configurable options for wind speed, wind direction, noise and gaseous pollutants.
Key features include:
- Continuous PM2.5 and PM10 monitoring: Capture particulate concentrations at multiple locations using configurable measurement intervals, helping teams identify short-term pollution increases.
- Wind speed and direction monitoring: Integrate local wind measurements through a suitable sensor configuration to identify upwind and downwind monitoring locations and interpret particulate movement across the construction site.
- Real-time dashboards: Compare current PM readings across monitoring locations and identify which site boundaries require attention.
- Historical trends: Review changes in PM10 concentrations before and after dust-control interventions to assess whether pollution levels have improved.
- Configurable alerts: Receive notifications when particulate concentrations cross predefined thresholds, allowing EHS teams to investigate potential dust events sooner.
- Environmental records: Maintain time-stamped monitoring data to support dust-complaint investigations, internal reviews and environmental reporting.
For instance, an EHS manager can examine a PM10 increase at the downwind boundary, check whether similar changes occurred at the upwind location, and compare the readings with construction activity records. With suitable local wind data, the team can further assess whether the increase may be connected to operations within the site.
Aurassure Trust provides the monitoring data and platform visibility needed for these comparisons. By combining real-time particulate measurements with strategic sensor placement, local wind conditions and construction activity records, teams can better identify potential pollution sources and make informed dust-control decisions.
Conclusion
Upwind vs downwind monitoring helps construction teams investigate whether PM10 increases may be connected to site activities and assess whether dust-control measures are working. Reliable comparisons also help EHS teams respond to complaints with better supporting evidence.
Take greater control of dust monitoring across your construction sites with Aurassure Trust. Equip your projects with real-time particulate monitoring, timely alerts and historical data to support quicker investigations and more informed dust-control decisions. Put Aurassure Trust to work across your construction sites.
